FUSEHOLDER FUSES LEB-BB
Product Details
Attributes
Features
Resources

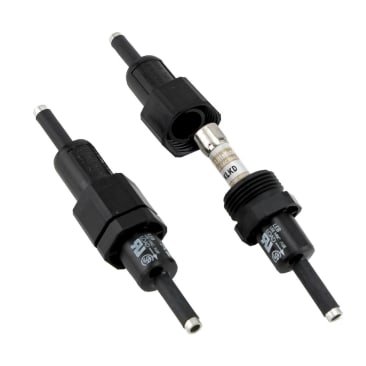

Fuse Holder, 600 VAC/VDC, 30 A, 200 kA Interrupt, 1 Pole, Crimp Connection Type, 14 to 10 AWG Wire, In-Line Mount, For Use With: Class CC and Midget Fuses, 4-1/2 in Length
The Littelfuse® 600 V in-line watertight fuse holders are the ideal answer for all high humidity and corrosive environments where fuses are required. Available in both breakaway and non-breakaway, single and double pole versions, these fuse holders allow maximum flexibility for any application.
- Safety permits individual fixture or device to be disconnected from circuit for servicing, eliminates possibility of shock
- Individual fixture fusing - prevents loss of one fixture through accident, vandalism or end of life from darkening the entire circuit
- Simplifies maintenance being able to immediately identify the one faulted fixture eliminates testing the entire circuit, speeds repair and permits servicing the individual unit while the rest of the circuit is functioning
- Reduces damage from fault can prevent faulted ballast or other failure from severely damaging fixture or device, reducing necessary repair or need of replacement
- Watertight-internal O-ring provides watertight seal
- Superior terminal seeds ultrasonically welded terminals provide maximum strength and eliminate leaking at terminals
- Break-resistant fiberglass-reinforced polymer body resists damage from dropping or impact much better than phenolic look-alikes
- Flexible terminations accommodates a wide range of stranded or solid copper conductors, with either crimp or screw terminals
Product Details
Fuse Holder, 600 VAC/VDC, 30 A, 200 kA Interrupt, 1 Pole, Crimp Connection Type, 14 to 10 AWG Wire, In-Line Mount, For Use With: Class CC and Midget Fuses, 4-1/2 in Length
The Littelfuse® 600 V in-line watertight fuse holders are the ideal answer for all high humidity and corrosive environments where fuses are required. Available in both breakaway and non-breakaway, single and double pole versions, these fuse holders allow maximum flexibility for any application.
Attributes
Features
- Safety permits individual fixture or device to be disconnected from circuit for servicing, eliminates possibility of shock
- Individual fixture fusing - prevents loss of one fixture through accident, vandalism or end of life from darkening the entire circuit
- Simplifies maintenance being able to immediately identify the one faulted fixture eliminates testing the entire circuit, speeds repair and permits servicing the individual unit while the rest of the circuit is functioning
- Reduces damage from fault can prevent faulted ballast or other failure from severely damaging fixture or device, reducing necessary repair or need of replacement
- Watertight-internal O-ring provides watertight seal
- Superior terminal seeds ultrasonically welded terminals provide maximum strength and eliminate leaking at terminals
- Break-resistant fiberglass-reinforced polymer body resists damage from dropping or impact much better than phenolic look-alikes
- Flexible terminations accommodates a wide range of stranded or solid copper conductors, with either crimp or screw terminals
