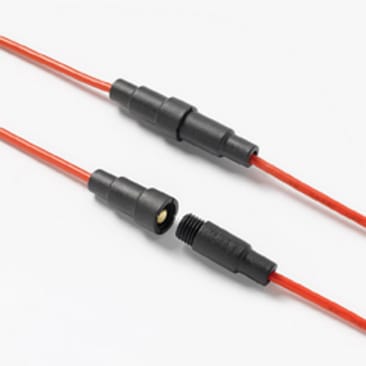

IN-LINE GLASS FUSE HOLDER F/1/4 X 1-1/4 FUSES 150-079
Product Details
Attributes
Features
Resources
Fuse Holder, 32 V, 20 A, 14 AWG Wire, In-Line Mount, For Use With: 3AG/3AB and SFE Fuses, Thermoset, Black, -40 to 125 deg C, 2.08 in Length, 0.69 in Dia
155 Series in-line bayonet knob fuse holders are intended for use at 32 V or less for 3AG, 3AB or SFE style glass fuses. The body and knob features a secure spring-loaded twist lock and are each made of black thermoset for flammability-resistance. Fuse holder UL recognized to 20 A, 32 VDC.
- 19 in wire loop for cut-and-wire installation
- Intended for use at 32 V or less with fuses rated up to 20 A when the proper spring is installed for full size
- Both body and knob have a 0.2 in diameter hole for insulated wire
- Designed to accommodate #14 AWG stranded wire
- Supplied with 19 in loop of #14 AWG red vinyl insulated wire
- SFE fuse with a spring in different lengths depending of the fuse size
- Supplied with a spring in different lengths depending of the fuse size
