8 X 8 FIRE RATED ACCESS DOOR PAINTED
MFR Part #:Â PAINTED
SKU #:Â 0247801
Brand:Â Approved Vendor
UPC:Â 779897712241

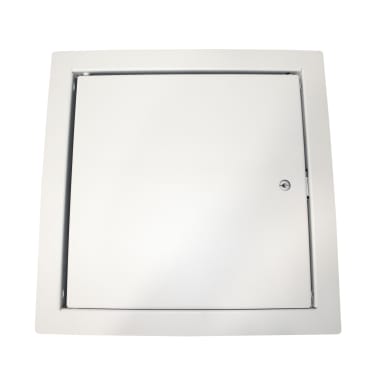

U314967 Uninsulated Fire-Rated Access Door, 8 in W Door, 8 in H Door, White, Mild Steel Door, Keyed Locking
1 Year Limited
cULus Listed | UL Listed
Product Details
Attributes
Features
Resources
Uninsulated Fire-Rated Access Door, 8 in Door Width, 8 in Door Height, 8-1/2 in Opening Width, 8-1/2 in Opening Height, White, Satin, 16 ga, Mild Steel Door, Mild Steel Frame, Keyed Locking, Pivot Pin Hinge, Additional Information: 1 Latch
Satin coat steel doors have a primed white finish
Cover Size:
8 in
Opening Height:
8-1/2 in
Opening Width:
8-1/2 in
Additional Information:
1 Latch
Color:
White
Door Height:
8 in
Door Material:
Mild Steel
Door Width:
8 in
Finish:
Satin
Frame Material:
Mild Steel
Gauge:
16 ga
Hinge Type:
Pivot Pin
Locking Type:
Keyed
- Flush to frame door
- Flush to frame door
- Self-closing
- Can be opened from the inside or back of the door with MIFAB’s
- Four-piece welded frame with masonry mounting straps
- Concealed pivot pins
- Spring heavy-duty
- Standard flush-mounted, interchangeable turn ring operator and key operator latch
- Fire rating “B” label 1-1/2 hr for walls
Product Details
Uninsulated Fire-Rated Access Door, 8 in Door Width, 8 in Door Height, 8-1/2 in Opening Width, 8-1/2 in Opening Height, White, Satin, 16 ga, Mild Steel Door, Mild Steel Frame, Keyed Locking, Pivot Pin Hinge, Additional Information: 1 Latch
Satin coat steel doors have a primed white finish
Attributes
Cover Size:Â 8 in
Opening Height:Â 8-1/2 in
Opening Width:Â 8-1/2 in
Additional Information:Â 1 Latch
Color:Â White
Door Height:Â 8 in
Door Material:Â Mild Steel
Door Width:Â 8 in
Finish:Â Satin
Frame Material:Â Mild Steel
Gauge:Â 16 ga
Hinge Type:Â Pivot Pin
Locking Type:Â Keyed
Features
- Flush to frame door
- Flush to frame door
- Self-closing
- Can be opened from the inside or back of the door with MIFAB’s
- Four-piece welded frame with masonry mounting straps
- Concealed pivot pins
- Spring heavy-duty
- Standard flush-mounted, interchangeable turn ring operator and key operator latch
- Fire rating “B” label 1-1/2 hr for walls
