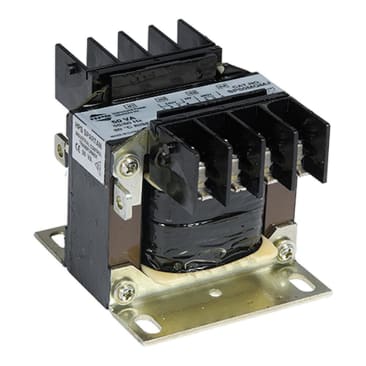

HAMMOND PWR POWER SP50PR CNTRL XFRMR 1PH 50VA 12X24
Product Details
Attributes
Features
Resources
HPS, SP50PR, Control Transformer, Dry Type, Series: Spartan®, 120/240 VAC Primary, 12/24 VAC Secondary, 50 VA Power, 50 Hz Frequency, 1 ph, 4.17/2.08 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, Open/Core and Coil Enclosure, 40 deg C, 2.6 in L x 3.35 in W x 2.6 in H Dimensions
The HPS Spartan® series of industrial control transformers are ideally suited for general purpose, industrial and light duty loads. Designed for applications where high inrush or machine tool duty are not necessary, the HPS Spartan control transformer offers an efficient and economical solution.
- All units supplied with primary and secondary voltage link/jumpers
- All terminal blocks utilize a combination slot/Phillips #6 screw with a SEMS washer
- Coil face terminations utilize a 1/4 - 20 UNC x 0.50 in slot/Phillips screw and a spring lock washer
- Superior insulating materials
- Premium packaging which features premium fluted cartons and custom molded foam inserts
- Copper wound coils with high dielectric strength insulation
- All HPS Spartan® units are supplied with trilingual installation and wiring instruction sheets
- All HPS Spartan® transformers are vacuum impregnated with polyester resin and oven cured
- Bolted core construction
- 120/240, 115/230, 110/220 V primary volt
- 12 x 24, 11.5 x 23, 11 x 22 V secondary volt
- Primary and secondary voltage links/jumpers supplied standard with all transformers
- 40 deg C maximum
