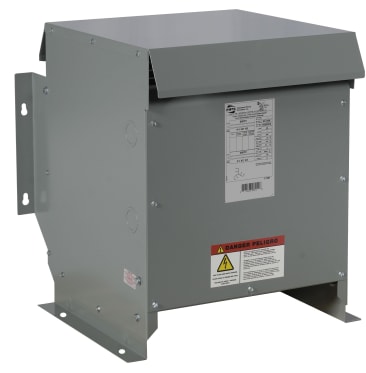

HAMMOND PWR Y075PKCN 3-PHASE NEMA 3R AUTOXFRMR 75KVA
Product Details
Attributes
Features
Resources
HPS Auto Transformer, General Purpose Ventilated, Series: Y Series, 600Y/480Y VAC Primary, 600Y/480Y VAC Secondary, 75 kVA Power, 60 Hz Frequency, 3 ph, Mounting Pad/Wire Lead Connection, Floor Mounting, 200/220 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, Steel Housing Material, 20.2 in L x 19.38 in W x 21.5 in H Dimensions
HPS offers 3-phase autotransformers that are available for applications where small voltage corrections are necessary in a distribution system. They are frequently used as an economical alternative to 3-phase general purpose distribution transformers to adjust the supply voltage to match specific load requirements when load isolation from the supply line is not required. Autotransformers can be used as either a step-up or step-down transformer.
- Anti-vibration pads/isolators are used between the transformer core and coil and the enclosure
- Ground core and coil assembly to enclosure with a flexible copper grounding strap or equivalent
- Provides multiple voltages in smaller footprints than isolation transformers
Product Details
HPS Auto Transformer, General Purpose Ventilated, Series: Y Series, 600Y/480Y VAC Primary, 600Y/480Y VAC Secondary, 75 kVA Power, 60 Hz Frequency, 3 ph, Mounting Pad/Wire Lead Connection, Floor Mounting, 200/220 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, Steel Housing Material, 20.2 in L x 19.38 in W x 21.5 in H Dimensions
HPS offers 3-phase autotransformers that are available for applications where small voltage corrections are necessary in a distribution system. They are frequently used as an economical alternative to 3-phase general purpose distribution transformers to adjust the supply voltage to match specific load requirements when load isolation from the supply line is not required. Autotransformers can be used as either a step-up or step-down transformer.
Attributes
Features
- Anti-vibration pads/isolators are used between the transformer core and coil and the enclosure
- Ground core and coil assembly to enclosure with a flexible copper grounding strap or equivalent
- Provides multiple voltages in smaller footprints than isolation transformers
