OATEY 37981 20 DFU SURE-VENT AIR ADMITTANCE VLV W/FACE PLATE
Product Details
Attributes
Features
Resources

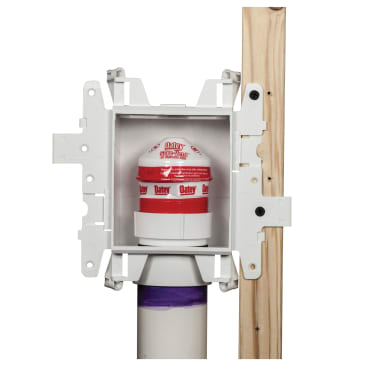

Oatey® MODA™ Air Admittance Valve Box, Specifications: 20 DFU, PVC, 8 in W x 3.38 in D x 4.85 in H, Domestic
Oatey® Sure-Vent® air admittance valves provide a method of allowing air to enter the plumbing drainage system without the use of a vent extended to open air and to prevent sewer gases from escaping into a building. An air admittance valve is a one way valve designed to allow air to enter the plumbing drainage system when negative pressures develop in the piping system. The device shall close by gravity and seal the vent terminal at zero differential pressure (no flow conditions) and under positive internal pressures. Valves shall be 100% functionally tested at 1/4 in H2O and 30 in H2O water column. The valves shall utilize a soft-centered, silicone membrane with Sweet Spot™ technology, allowing valve to open at -0.01 psi and seals at 0 psi and above. The MODA™ supply box shall have inter-locking wing flanges allowing installation on a single stud, between two studs or on separate walls, without the need for additional components. Box shall be manufactured of PVC, allowing solvent welded joints to be prepared in accordance with ASTM D2855 for PVC drainage systems (without the use of specialty cements).
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle stud and three box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space limited laundry rooms
- Plumber preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands upto the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- 2-piece valve design makes valve replacement easy-to-repair, without damaging drywall
- Valves rated to 150 psi air and 250 psi water
- PVC with 2 in NPT threads valve
- PVC 1/4 turn adapter with sealing gasket
- Faceplates are pre-assembled on box
Product Details
Oatey® MODA™ Air Admittance Valve Box, Specifications: 20 DFU, PVC, 8 in W x 3.38 in D x 4.85 in H, Domestic
Oatey® Sure-Vent® air admittance valves provide a method of allowing air to enter the plumbing drainage system without the use of a vent extended to open air and to prevent sewer gases from escaping into a building. An air admittance valve is a one way valve designed to allow air to enter the plumbing drainage system when negative pressures develop in the piping system. The device shall close by gravity and seal the vent terminal at zero differential pressure (no flow conditions) and under positive internal pressures. Valves shall be 100% functionally tested at 1/4 in H2O and 30 in H2O water column. The valves shall utilize a soft-centered, silicone membrane with Sweet Spot™ technology, allowing valve to open at -0.01 psi and seals at 0 psi and above. The MODA™ supply box shall have inter-locking wing flanges allowing installation on a single stud, between two studs or on separate walls, without the need for additional components. Box shall be manufactured of PVC, allowing solvent welded joints to be prepared in accordance with ASTM D2855 for PVC drainage systems (without the use of specialty cements).
Attributes
Features
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle stud and three box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space limited laundry rooms
- Plumber preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands upto the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- 2-piece valve design makes valve replacement easy-to-repair, without damaging drywall
- Valves rated to 150 psi air and 250 psi water
- PVC with 2 in NPT threads valve
- PVC 1/4 turn adapter with sealing gasket
- Faceplates are pre-assembled on box
