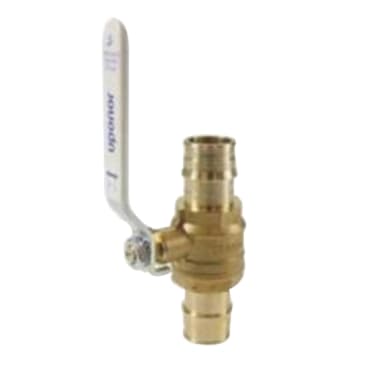

PROPEX LF BRS COMM BL VLV 1 X 1 UPONOR LFC4821010
MFR Part #:Â LFC4821010
SKU #:Â 1223728
Brand:Â Uponor
UPC:Â 673372232272
Please note this item is discontinued (order fulfillment will depend on stock availability): Uponor ProPEX® Series LFC4821010 Ball Valve, 1 in, PEX, Brass, 250 psi
For commercial plumbing and hydronic distribution piping
ANSI 14/61 Certified | ASTM F877/F1960 Certified | CSA B137.5 Certified | NSF 14/16/359 Certified
Product Details
Attributes
Features
Resources
Uponor Ball Valve, ProPEX® Series, 1 in Nominal, PEX Connection, 250 psi, Number of Ports/Ways: 2, Brass Body, Brass Trim, 250 deg F, 4.27 in L x 1.81 in W
Use Uponor ProPEX Lead-free Brass Commercial Ball Valves for all commercial PEX piping applications. Both ends are manufactured with the ProPEX fitting for direct connections to Uponor PEX piping.
Ball Material:
Brass
Body Material:
Brass
Clearance Items:
Clearance
Connection Type:
PEX
Dimensions:
4.27 in L x 1.81 in W
Domestic/Import:
Import
End Style:
PEX
Nominal Size:
1 in
Number of Ports/Ways:
2
Port Type:
Full
Pressure Rating:
250 psi
Series:
ProPEX® Series
Temperature Rating:
250 deg F
Trim Material:
Brass, Brass Stem
- Blow-out-proof stem design
- Allows designers and installers to specify and install an inline, PEX-to-PEX ball valve anywhere in the system
- Durable, reliable ProPEX fitting system for connections that hold tight with 1000 lb of radial force
- 100% visual ProPEX connection cannot be dry-fit
- For use with PEX piping
Product Details
Uponor Ball Valve, ProPEX® Series, 1 in Nominal, PEX Connection, 250 psi, Number of Ports/Ways: 2, Brass Body, Brass Trim, 250 deg F, 4.27 in L x 1.81 in W
Use Uponor ProPEX Lead-free Brass Commercial Ball Valves for all commercial PEX piping applications. Both ends are manufactured with the ProPEX fitting for direct connections to Uponor PEX piping.
Attributes
Ball Material:Â Brass
Body Material:Â Brass
Clearance Items:Â Clearance
Connection Type:Â PEX
Dimensions:Â 4.27 in L x 1.81 in W
Domestic/Import:Â Import
End Style:Â PEX
Nominal Size:Â 1 in
Number of Ports/Ways:Â 2
Port Type:Â Full
Pressure Rating:Â 250 psi
Series:Â ProPEX® Series
Temperature Rating:Â 250 deg F
Trim Material:Â Brass, Brass Stem
Features
- Blow-out-proof stem design
- Allows designers and installers to specify and install an inline, PEX-to-PEX ball valve anywhere in the system
- Durable, reliable ProPEX fitting system for connections that hold tight with 1000 lb of radial force
- 100% visual ProPEX connection cannot be dry-fit
- For use with PEX piping
