WIRSBO F4340500 1/2 X 100FT AQUAPEX WHITE W/BLUE PRINT
MFR Part #: F4340500
SKU #: 1245200
Brand: Uponor
UPC: 673372505895

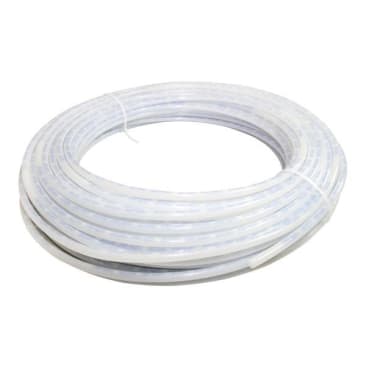

Uponor F4340500 AquaPEX® Coil Tubing, 1/2 in Nominal, 0.475 in Dia Inside x 0.625 in Dia Outside x 100 ft L, White/Blue, Engel Process, Crosslinked Polyethylene, Domestic
25 Years
PEX-a Plumbing Systems|Radiant Heating and Cooling Systems
ASTM F1960 | ASTM E119/UL 263 | ASTM F876 | ASTM E84 | ASTM F2023 | ASTM E814/ULC S115 | ASTM F877 | CSA B137.5 | ULC S102.2 | CSA B214 | NSF-61 | ULC S101 | NSF-14 | IAPMO-ES | ICC-ES-PMG | cNSFus-pw | CCMC | PPI TR4 | CSA | UL | U.P.Code | cQAIus P321 | HUD MR 1269 | BMEC
Product Details
Attributes
Features
Resources
Uponor, F4340500, Coil Tubing, Series: AquaPEX®, 1/2 in Nominal, 0.475 in ID, 0.625 in OD, 100 ft Length, PEX End Style, SDR 9 Schedule, 80 to 160 psi Working, 73 to 200 deg F, Engel Process Method of Manufacture, Crosslinked Polyethylene, White/Blue, Domestic
Color:
White/Blue
Country Of Origin:
US
Domestic/Import:
Domestic
End Style:
PEX
Inside Diameter:
.475 in
Length:
100 ft
Material:
Crosslinked Polyethylene
Method of Manufacture:
Engel Process
Nominal Size:
1/2 in
Outside Diameter:
.625 in
Schedule Rating:
SDR 9
Series:
AquaPEX®
Temperature Rating:
73 to 200 deg F
Working Pressure:
80 to 160 psi
- Highest degree of crosslinking for the greatest flexibility, durability and performance
- Water Quality Association (WQA) Gold Seal for the greatest resiliency in freezing conditions
- Blue colored print string to designate cold-water lines
- Resists corrosion, pitting and scale buildup
- Long, flexible coils reduce the number of required fittings
- Approved in continuous-recirculation systems operating up to 140 deg F (60 deg C)
- Features a one-month UV resistance
Product Details
Uponor, F4340500, Coil Tubing, Series: AquaPEX®, 1/2 in Nominal, 0.475 in ID, 0.625 in OD, 100 ft Length, PEX End Style, SDR 9 Schedule, 80 to 160 psi Working, 73 to 200 deg F, Engel Process Method of Manufacture, Crosslinked Polyethylene, White/Blue, Domestic
Attributes
Color: White/Blue
Country Of Origin: US
Domestic/Import: Domestic
End Style: PEX
Inside Diameter: .475 in
Length: 100 ft
Material: Crosslinked Polyethylene
Method of Manufacture: Engel Process
Nominal Size: 1/2 in
Outside Diameter: .625 in
Schedule Rating: SDR 9
Series: AquaPEX®
Temperature Rating: 73 to 200 deg F
Working Pressure: 80 to 160 psi
Features
- Highest degree of crosslinking for the greatest flexibility, durability and performance
- Water Quality Association (WQA) Gold Seal for the greatest resiliency in freezing conditions
- Blue colored print string to designate cold-water lines
- Resists corrosion, pitting and scale buildup
- Long, flexible coils reduce the number of required fittings
- Approved in continuous-recirculation systems operating up to 140 deg F (60 deg C)
- Features a one-month UV resistance
