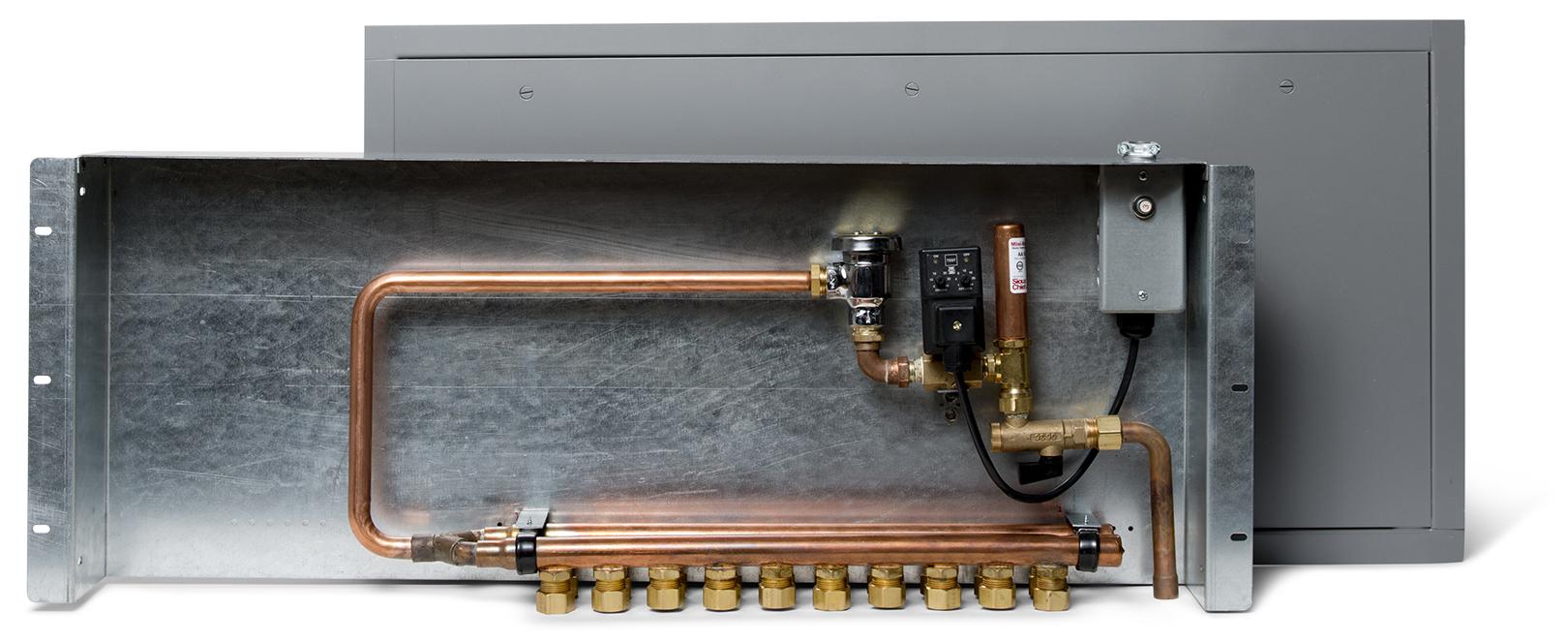

SIOUX CHIEF 695-ER20 20-PORT RECESSED ELECTRONIC TRAP PRIMER
Product Details
Attributes
Features
Resources
Sioux Chief Electronic Trap Primer, 20-Port, Series: 695, Compression x Solder, Steel, Galvanized, Domestic
Sioux Chief ETP&rade; electronic trap primers shall be used where replenishmentof floor drain traps is required. Trap primer shall be listed and certified to ASSE1044 and equipped with solenoid actuating device, vacuum breaker, distributionmanifold, and proper electrical hardware. Water release is factory-set for dailyrelease of 2 ounces. Frequency and duration of activation shall be adjustable.Trap primer shall be equipped with an ASSE 1010 arrester to protect the solenoiddevice. Trap primer shall be mounted in steel access boxes.
- DO NOT use thread sealant compound
- Service multiple traps with a single primer
- Perfect for utility room installation and easy access to supply lines
- Complete with Mini-Rester, shutoff, vacuum breaker and solenoid
- Type L copper distribution manifold
- Brass outlet
- Plastic housing, brass components solenoid
- 9.2 W at 60 hz, 120VAC, 300 ft maximum electrical supply, 18 ga minimum wire, 3 A circuit breaker
Product Details
Sioux Chief Electronic Trap Primer, 20-Port, Series: 695, Compression x Solder, Steel, Galvanized, Domestic
Sioux Chief ETP&rade; electronic trap primers shall be used where replenishmentof floor drain traps is required. Trap primer shall be listed and certified to ASSE1044 and equipped with solenoid actuating device, vacuum breaker, distributionmanifold, and proper electrical hardware. Water release is factory-set for dailyrelease of 2 ounces. Frequency and duration of activation shall be adjustable.Trap primer shall be equipped with an ASSE 1010 arrester to protect the solenoiddevice. Trap primer shall be mounted in steel access boxes.
Attributes
Features
- DO NOT use thread sealant compound
- Service multiple traps with a single primer
- Perfect for utility room installation and easy access to supply lines
- Complete with Mini-Rester, shutoff, vacuum breaker and solenoid
- Type L copper distribution manifold
- Brass outlet
- Plastic housing, brass components solenoid
- 9.2 W at 60 hz, 120VAC, 300 ft maximum electrical supply, 18 ga minimum wire, 3 A circuit breaker
