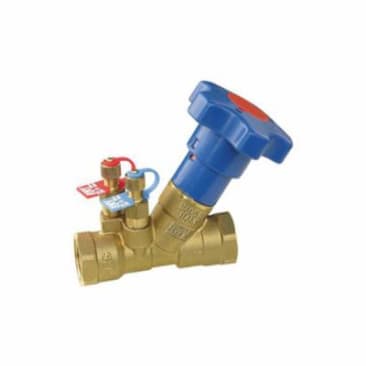

RED-WHITE 061-20083 3/4 IP BRS BALANCING VLV 9517
MFR Part #: 9517 3/4
SKU #: 1163889
Brand: RWV®
UPC: 670779951058
RWV® 9517 3/4 Standard Hydronic Balancing Valve, 3/4 in Nominal, NPT End Style, 2.19 gpm Flow Rate, DZR Brass Body, Import
ASME B1.20.1 | BS7350 | BAA Requirement | UNS C35330 Body/Disc | ASME B124 C37700 Stem
Product Details
Attributes
Features
Resources
RWV® Hydronic Balancing Valve, Standard, Series: 9517, 3/4 in Nominal, NPT, 300 lb WOG, 15 to 260 deg F, 2.19 gpm, Media: Water, Precision Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Disc O-Ring, 2.19 in L, Import
Actuator Type:
Precision Adjustable Handwheel
Body Material:
DZR Brass
Country Of Origin:
ITALY
Dimensions:
2.19 in L
Domestic/Import:
Import
End Style:
NPT
Flow Rate:
2.19 gpm
Media:
Water
Nominal Size:
3/4 in
Pressure Class:
300 lb WOG
Series:
9517
Softgoods Material:
PTFE Disc Gasket/EPDM Disc O-Ring
Temperature Rating:
15 to 260 deg F
Trim Material:
DZR Brass
Type:
Standard
- Fixed orifice design
- Integral memory stop
- DZR brass fixed orifice double regulating globe valve
- Positive shut-off with memory stop
- Tolerance on nominal CVS +/-3% (test according to BS7350)
- Venturi insert
Product Details
RWV® Hydronic Balancing Valve, Standard, Series: 9517, 3/4 in Nominal, NPT, 300 lb WOG, 15 to 260 deg F, 2.19 gpm, Media: Water, Precision Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Disc O-Ring, 2.19 in L, Import
Attributes
Actuator Type: Precision Adjustable Handwheel
Body Material: DZR Brass
Country Of Origin: ITALY
Dimensions: 2.19 in L
Domestic/Import: Import
End Style: NPT
Flow Rate: 2.19 gpm
Media: Water
Nominal Size: 3/4 in
Pressure Class: 300 lb WOG
Series: 9517
Softgoods Material: PTFE Disc Gasket/EPDM Disc O-Ring
Temperature Rating: 15 to 260 deg F
Trim Material: DZR Brass
Type: Standard
Features
- Fixed orifice design
- Integral memory stop
- DZR brass fixed orifice double regulating globe valve
- Positive shut-off with memory stop
- Tolerance on nominal CVS +/-3% (test according to BS7350)
- Venturi insert
