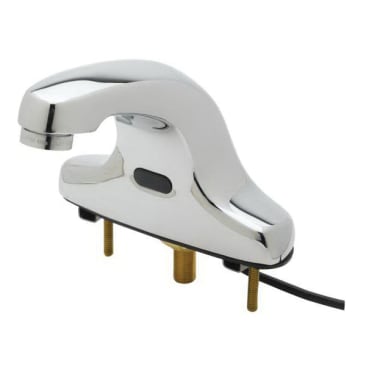

T&S 5EF-2D-DS Image 1

T&S 5EF-2D-DS 4IN DECK MOUNT SPOUT INFRARED FCT

MFR Part #: 5EF-2D-DS
SKU #: 1207642
Brand: T & S
UPC: 671262596619?
Equip 5EF-2D-DS Equip Electronic Sensor Faucet, 2.2 gpm Flow Rate, 4 in Center, Integral Spout, 3/8 in Outlet Hose, Polished Chrome
1 Year Limited
ASME A112.18.1 | ADA Compliant | ADA ANSI/ICC A117.1 | ASSE 1070 | CSA B125.1 | cCSAus Listed | cULus Listed | Commonwealth of Massachusetts | California CEC-400 (Power Supplies) | NSF 61 | NSF 372 | Low Lead Compliant | Taiwan/TAA | UL 1951 | EPA WaterSense® Certified | US Green Building Council Member | PROP65: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.

Equip Electronic Sensor Faucet, Equip Collection, 2.2 gpm Flow Rate, 4 in Center Distance, Integral Spout, 5-3/16 in Spout Reach, 3-5/8 in Spout Height, 3/8 in Outlet Hose, Side Spray(Y/N): No, 1/2 in Connection, Female NPSM Connection, Spray Pattern: Vandal-Resistant Aerator, 3/4 in Maximum Deck Thickness, Deck Mounting, Temperature Control Mixing Valve, 5-7/8 in L x 4-7/8 in H Dimensions, Brass, Polished Chrome, Import

Product Details

Equip Electronic Sensor Faucet, Equip Collection, 2.2 gpm Flow Rate, 4 in Center Distance, Integral Spout, 5-3/16 in Spout Reach, 3-5/8 in Spout Height, 3/8 in Outlet Hose, Side Spray(Y/N): No, 1/2 in Connection, Female NPSM Connection, Spray Pattern: Vandal-Resistant Aerator, 3/4 in Maximum Deck Thickness, Deck Mounting, Temperature Control Mixing Valve, 5-7/8 in L x 4-7/8 in H Dimensions, Brass, Polished Chrome, Import

Attributes

Country Of Origin: Taiwan
Finish/Color: Polished Chrome
Mounting Type: Deck
Spout Reach: 5-3/16 in
Center Distance: 4 in
Collection: Equip
Connection Size: 1/2 in
Connection Type: Female NPSM
Dimensions: 5-7/8 in L x 4-7/8 in H
Domestic/Import: Import
Flow Rate: 2.2 gpm
Material: Brass
Maximum Deck Thickness: 3/4 in
Outlet Hose Connection Size: 3/8 in
Side Spray(Y/N): No
Spout Height: 3-5/8 in
Spout Type: Integral
Spray Pattern: Vandal-Resistant Aerator
Valve/Cartridge Type: Temperature Control Mixing Valve

Features

  • 4 in deck mount faucet with polished chrome plated brass body with integral spout
  • B-0199-09 series 9, 2.2 gpm vandal resistant aerator
  • Water resistant control module
  • Plug in AC transformer or (4) AA battery (DC) power options
  • Temperature control mixing valve with check valves
  • 18 in flexible stainless steel supply hoses with 3/8 in compression connections
  • Low battery LED indicator light
  • Polished chrome plated brass body
  • AC/DC control module
  • Mixing tee

Resources

Line Drawing
Service Manual
Specification Sheet
Warranty Information
