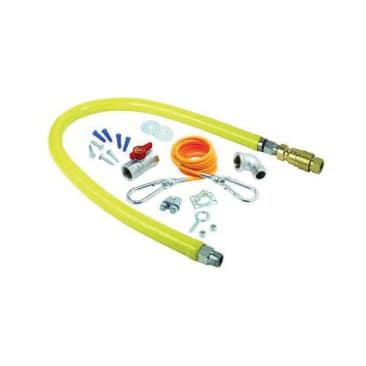

T&S HG-4D-48K 3/4X48 NPT COMMERCIAL GAS HOSE KIT WITH QUICK DISCONNECT
MFR Part #:Â HG-4D-48K
SKU #:Â 1258473
Brand:Â T & S
UPC:Â 671262229777?
Safe-T-Link HG-4D-48K Gas Appliance Connector, 3/4 in Nominal, MNPT End Style, 180000 Btu/hr Flow Rate, 48 in L, Domestic
5 Years Limited
Coated Gas Hose with MNPT Ends, (1) 2-Piece FNPT Quick Disconnect, (1) Installation Kit and (1) Street Elbow
ANSI Z21.69/CSA 6.16|ANSI Z21.41/CSA 6.9|BAA/ARRA Compliant|cCSAus Listed||City of Los Angeles|Commonwealth of Massachusetts|EPA WaterSense® Certified|NFPA 54|NSF/ANSI 2|US Green Building Council Member|PROP65: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.
Product Details
Attributes
Features
Resources
Safe-T-Link Gas Appliance Connector, Series: HG-4-K, 3/4 in Nominal, MNPT, 180000 Btu/hr, 48 in Length, Domestic
Country Of Origin:
US
Domestic/Import:
Domestic
End Style:
MNPT
Flow Rate:
180000 Btu/hr
Length:
48 in
Nominal Size:
3/4 in
Series:
HG-4-K
- 3/4 in MNPT free spin inlet
- 3/4 in MNPT free spin outlet
- 360 deg rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Extruded coated stainless steel braids
Product Details
Safe-T-Link Gas Appliance Connector, Series: HG-4-K, 3/4 in Nominal, MNPT, 180000 Btu/hr, 48 in Length, Domestic
Attributes
Country Of Origin:Â US
Domestic/Import:Â Domestic
End Style:Â MNPT
Flow Rate:Â 180000 Btu/hr
Length:Â 48 in
Nominal Size:Â 3/4 in
Series:Â HG-4-K
Features
- 3/4 in MNPT free spin inlet
- 3/4 in MNPT free spin outlet
- 360 deg rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Extruded coated stainless steel braids
