ALLTEMP 4JJ0525 370/440V CAPACITOR 25/5MFD
MFR Part #:Â 4JJ0525
SKU #:Â 1246617
Brand:Â Diversitech
UPC:Â 095247072002

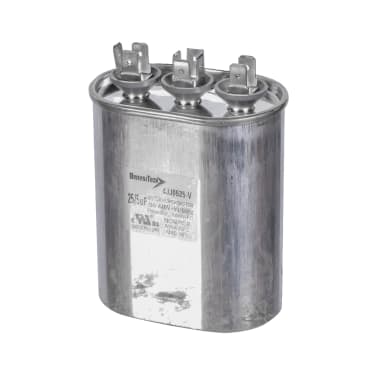

Diversitech 4JJ0525 Dual Motor Run Capacitor, 25/5 uF, 440 VAC, Oval
CSA 22.2 No 190 | IEC 60252 | UL 810
Product Details
Attributes
Features
Resources
Diversitech Motor Run Capacitor, Dual, 25/5 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 3.35 in H Case, Silver, Import
Capacitance:
25/5 uF
Case Material:
Metal
Color:
Silver
Country Of Origin:
CHINA
Domestic/Import:
Import
Shape:
Oval
Specifications:
50/60 Hz, +/-5% Tolerance, 3.35 in H Case
Type:
Dual
Voltage Rating:
440 VAC
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94% at 60000 hr
- Meets 10000 AFC safety requirement per UL 810
- Between terminals: Rated voltage x 1.75 VAC, 10 sec withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 sec withstand voltage test
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled, non PCB
- Quick connect terminal - Faston No 250 series size
- -40 to 70 deg C permissible temperature
Product Details
Diversitech Motor Run Capacitor, Dual, 25/5 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 3.35 in H Case, Silver, Import
Attributes
Capacitance:Â 25/5 uF
Case Material:Â Metal
Color:Â Silver
Country Of Origin:Â CHINA
Domestic/Import:Â Import
Shape:Â Oval
Specifications:Â 50/60 Hz, +/-5% Tolerance, 3.35 in H Case
Type:Â Dual
Voltage Rating:Â 440 VAC
Features
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94% at 60000 hr
- Meets 10000 AFC safety requirement per UL 810
- Between terminals: Rated voltage x 1.75 VAC, 10 sec withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 sec withstand voltage test
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled, non PCB
- Quick connect terminal - Faston No 250 series size
- -40 to 70 deg C permissible temperature
