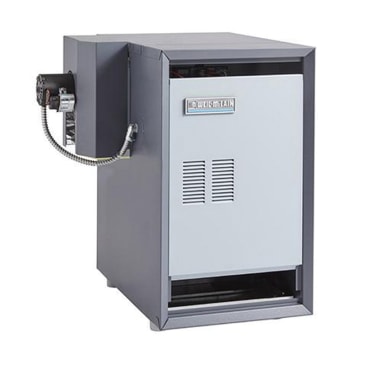

WEIL MCLAIN 381-359-013 NATURAL GAS CAST IRON BOILER LESS CIRCULATOR PUMP & HIGH LIMIT
MFR Part #: CGI-8-PIN
SKU #: 1013767
Brand: Weil-McLain®
UPC: 400002690962
Weil-McLain® 4 Series CGI-8-PIN Water Boiler, 84 % AFUE, 222 MBtu/hr BTU, 4.4 gal Capacity, Natural Gas Fuel, Cast-Iron
1 Year Parts Commercial, 2 Year Parts Residential, 10 Year Heat Exchanger Commercial, 20 Year Heat Exchanger Residential
Commercial and Residential
AHRI Certified|ASME Specified|ENERGY 2021 Compliant|DOE Listed
Product Details
Attributes
Features
Resources
Weil-McLain® Water Boiler, 4 Series, 84 % AFUE, 222 MBtu/hr BTU, 4.4 gal Capacity, 50 psi Pressure, Natural Gas Fuel, Chimney/Breeching/Vent Size: 6 in, 189 mbh DOE Heating, Ignition System: Intermittent Electronic, Net BTU Rating: 164 MBtu/hr, Cast-Iron, Dimensions: 28-3/8 in H x 25 in W x 23-1/4 in D, Domestic/Import: Domestic
AFUE Rating:
84 %
BTU Rating:
222 MBtu/hr
Capacity:
4.4 gal
Chimney/Breeching/Vent Size:
6 in
Country Of Origin:
US
Dimensions:
28-3/8 in H x 25 in W x 23-1/4 in D
DOE Heating Capacity:
189 mbh
Domestic/Import:
Domestic
Fuel Type:
Natural Gas
Ignition System:
Intermittent Electronic
Material:
Cast-Iron
Net BTU Rating:
164 MBtu/hr
Pressure Rating:
50 psi
Series:
4 Series
- Gas fired water boiler with cast iron sections
- Natural draft and direct exhaust capability
- Now with built-in low water cutoff functionality
- Compact design saves valuable living space
- No vertical draft hood and no mechanical vent damper
- Intermittent electronic ignition with standard components for easy servicing
- Integrated boiler control module with intermittent electronic ignition system and indicator/diagnostic lights
- Integrated low-water cutoff, with test button
- Combination pressure temperature gauge
- 2-piece, top jacket panel
- Insulated extended steel jacket
- Cast iron sections with built-in air separator
- Radiation plates
- Steel base
- Flue gas collector/transition assembly
- Combination gas valve for 24 V
- Wiring harness
- Air pressure switch
- Non-linting pilot burner
- High grade stainless steel burners
Product Details
Weil-McLain® Water Boiler, 4 Series, 84 % AFUE, 222 MBtu/hr BTU, 4.4 gal Capacity, 50 psi Pressure, Natural Gas Fuel, Chimney/Breeching/Vent Size: 6 in, 189 mbh DOE Heating, Ignition System: Intermittent Electronic, Net BTU Rating: 164 MBtu/hr, Cast-Iron, Dimensions: 28-3/8 in H x 25 in W x 23-1/4 in D, Domestic/Import: Domestic
Attributes
AFUE Rating: 84 %
BTU Rating: 222 MBtu/hr
Capacity: 4.4 gal
Chimney/Breeching/Vent Size: 6 in
Country Of Origin: US
Dimensions: 28-3/8 in H x 25 in W x 23-1/4 in D
DOE Heating Capacity: 189 mbh
Domestic/Import: Domestic
Fuel Type: Natural Gas
Ignition System: Intermittent Electronic
Material: Cast-Iron
Net BTU Rating: 164 MBtu/hr
Pressure Rating: 50 psi
Series: 4 Series
Features
- Gas fired water boiler with cast iron sections
- Natural draft and direct exhaust capability
- Now with built-in low water cutoff functionality
- Compact design saves valuable living space
- No vertical draft hood and no mechanical vent damper
- Intermittent electronic ignition with standard components for easy servicing
- Integrated boiler control module with intermittent electronic ignition system and indicator/diagnostic lights
- Integrated low-water cutoff, with test button
- Combination pressure temperature gauge
- 2-piece, top jacket panel
- Insulated extended steel jacket
- Cast iron sections with built-in air separator
- Radiation plates
- Steel base
- Flue gas collector/transition assembly
- Combination gas valve for 24 V
- Wiring harness
- Air pressure switch
- Non-linting pilot burner
- High grade stainless steel burners
