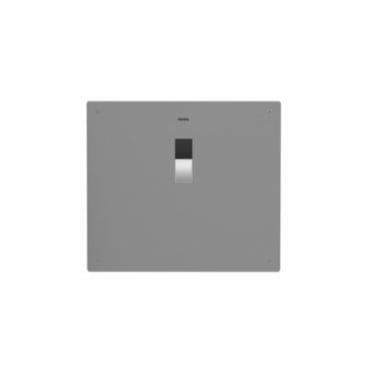

TOTO TEU2LA12#SS Image 1

TOTO TEU2LA12#SS ECO ELECTRONIC FLUSH VALVE CONCEALED URINAL .5G WITH 14X12 COVER & VB9RB 12 STAINLESS STEEL

MFR Part #: TEU2LA12#SS
SKU #: 1236113
Brand: Toto®
UPC: 739268311992
Toto® TEU2LA12#SS High Efficiency Concealed Urinal Flush Valve, EcoPower®, 0.5 gpf Flush Rate, 3/4 in NPT Inlet, 3/4 in Spud, 15 to 125 psi Pressure, Stainless Steel
3 Years Limited
3/4 in Angle Stop and 3/4 in Vacuum Breaker Set
ADA Compliant | ASSE 1037 | CSA B125.3 | cUPC Listed | IAPMO Listed | IPC Listed | NSPC Listed | NPC Listed | UPC Listed

Toto® Concealed Urinal Flush Valve, High Efficiency, Series: TEU2LA12, EcoPower® Power Source, 0.5 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Top, 19-11/16 to 33-1/2 in Sensor, 15 to 125 psi Pressure, Bronze, Stainless Steel

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.

Product Details

Toto® Concealed Urinal Flush Valve, High Efficiency, Series: TEU2LA12, EcoPower® Power Source, 0.5 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Top, 19-11/16 to 33-1/2 in Sensor, 15 to 125 psi Pressure, Bronze, Stainless Steel

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.

Attributes

Country Of Origin: US
Flush Rate: .5 gpf
Inlet Size: 3/4 in NPT
Power Source: EcoPower®
Type: High Efficiency
Connection Location: Top
Finish/Color: Stainless Steel
Material: Bronze
Pressure Rating: 15 to 125 psi
Sensor Range: 19-11/16 to 33-1/2 in
Series: TEU2LA12
Spud Coupling: 3/4 in
Valve Design: Piston Operated

Features

  • Concealed flush valve
  • 14 x 12 in stainless steel cover plate with tamper proof screws
  • Hydropower self-generating system
  • Adjustable tail piece connection
  • Neutral rough
  • Manual flush override
  • Self adjusting detection range
  • 6-sec detection time with 3-sec flush delay
  • Automatic maintenance flush after 12 hr of inactivity

Resources

Catalog
Instruction/Installation Manual
Line Drawing
Specification Sheet
