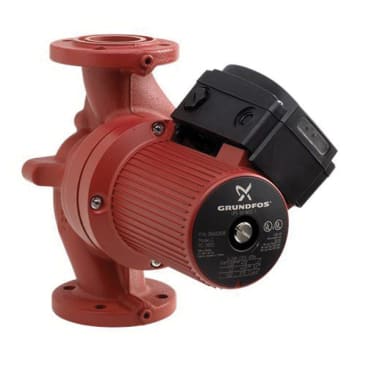

GRUNDFOS 96402842 3/4HP 575V 3PH CI 2SP CRC PUMP UPS50-80/2
MFR Part #:Â 96402842
SKU #:Â 1029694
Brand:Â Grundfos
UPC:Â 5700390683498
Grundfos UPS Series UPS 50-80/2 F 96402842 Circulator Pump, 20 to 180 gpm, 610 W, 575 V, 0.48 A, 60 Hz, 3428 rpm Motor
For air conditioning, heating, hot water recirculation, residential heating, district cooling, district heating and industrial heating
ASTM 35B-40B | cUL Listed
Product Details
Attributes
Features
Resources
Grundfos Circulator Pump, UPS Series, Model: UPS 50-80/2 F, 20 to 180 gpm Flow Rate, 80 dm Maximum Head, 610 W, 575 V, 0.48 A, 60 Hz, 145 psi Maximum Pressure, 3428 rpm Motor Speed Rating, 3/4 hp, Flanged Connection, 3 ph Phase, 0 to 40 deg C, Iron, 327 mm L x 171 mm W x 292 mm H, Additional Information: F Insulation Class, Stainless Steel Impeller Material
Additional Information:
F Insulation Class, Stainless Steel Impeller Material
Amperage Rating:
.48 A
Body Material:
Cast Iron
Connection Type:
Flanged
Dimensions:
327 mm L x 171 mm W x 292 mm H
Flow Rate:
20 to 180 gpm
Frequency Rating:
60 Hz
HP Rating:
3/4 hp
Impeller Material:
Stainless Steel
Insulation Class:
F
Material:
Iron
Maximum Head:
80 dm
Maximum Pressure:
145 psi
Model:
UPS 50-80/2 F
Motor Speed Rating:
3428 rpm
Phase:
3 ph
Power Rating:
610 W
Pressure Rating:
145 psi
Series:
UPS Series
Speed Rating:
3428 rpm
Temperature Rating:
0 to 40 deg C
Voltage Rating:
575 V
- Stainless steel neck ring to reduce recirculation and increase efficiency
- Durable tungsten carbide motor bearings lubricated by media
- Stainless steel shaft
- Dynamically balanced rotor encapsulated in stainless steel
- Stainless steel impeller and bearing plate for corrosion-resistance and maximum efficiency
- Stator with built-in thermal overload switch
- Multiple speed switch for optimum performance and energy savings
- Fiber optic indicator lights for visual inspection of operation (On/Off), rotation and troubleshooting
- Operates at less than 40 dB
- Built-in dimensions to match installed base no need for piping modifications
- No risk of touching electrically hot windings or rotating parts
- Saves energy pump can be set to required speed rather than running at maximum
- Pump runs quietly and with no noise
- Add-on modules increase the versatility of your pump and reduce the need for and cost of buying additional pumps
- 2-speed motor
- Ceramic radial bearings, carbon axial bearing
- Stainless steel rotor can, bearing plate and rotor cladding
- Aluminum alloy stator housing
- Stator with built-in thermal switch
Product Details
Grundfos Circulator Pump, UPS Series, Model: UPS 50-80/2 F, 20 to 180 gpm Flow Rate, 80 dm Maximum Head, 610 W, 575 V, 0.48 A, 60 Hz, 145 psi Maximum Pressure, 3428 rpm Motor Speed Rating, 3/4 hp, Flanged Connection, 3 ph Phase, 0 to 40 deg C, Iron, 327 mm L x 171 mm W x 292 mm H, Additional Information: F Insulation Class, Stainless Steel Impeller Material
Attributes
Additional Information:Â F Insulation Class, Stainless Steel Impeller Material
Amperage Rating:Â .48 A
Body Material:Â Cast Iron
Connection Type:Â Flanged
Dimensions:Â 327 mm L x 171 mm W x 292 mm H
Flow Rate:Â 20 to 180 gpm
Frequency Rating:Â 60 Hz
HP Rating:Â 3/4 hp
Impeller Material:Â Stainless Steel
Insulation Class:Â F
Material:Â Iron
Maximum Head:Â 80 dm
Maximum Pressure:Â 145 psi
Model:Â UPS 50-80/2 F
Motor Speed Rating:Â 3428 rpm
Phase:Â 3 ph
Power Rating:Â 610 W
Pressure Rating:Â 145 psi
Series:Â UPS Series
Speed Rating:Â 3428 rpm
Temperature Rating:Â 0 to 40 deg C
Voltage Rating:Â 575 V
Features
- Stainless steel neck ring to reduce recirculation and increase efficiency
- Durable tungsten carbide motor bearings lubricated by media
- Stainless steel shaft
- Dynamically balanced rotor encapsulated in stainless steel
- Stainless steel impeller and bearing plate for corrosion-resistance and maximum efficiency
- Stator with built-in thermal overload switch
- Multiple speed switch for optimum performance and energy savings
- Fiber optic indicator lights for visual inspection of operation (On/Off), rotation and troubleshooting
- Operates at less than 40 dB
- Built-in dimensions to match installed base no need for piping modifications
- No risk of touching electrically hot windings or rotating parts
- Saves energy pump can be set to required speed rather than running at maximum
- Pump runs quietly and with no noise
- Add-on modules increase the versatility of your pump and reduce the need for and cost of buying additional pumps
- 2-speed motor
- Ceramic radial bearings, carbon axial bearing
- Stainless steel rotor can, bearing plate and rotor cladding
- Aluminum alloy stator housing
- Stator with built-in thermal switch
