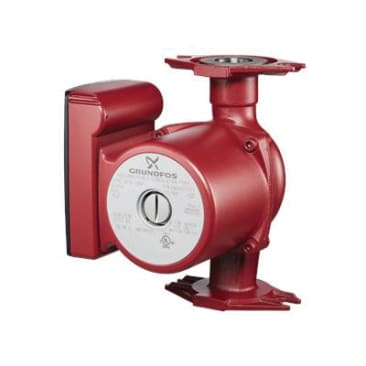

GRUNDFOS UP15-42RUC7 CIRC PUMP F HPS PANEL

Grundfos Circulator Pump, Series: UP Series, 2.123 cu-m/hr Flow Rate, 4.6 m Maximum Head, 85 W, 115 V, 0.74 A, 60 Hz, 10 bar Maximum Pressure, 3/4 in Connection, Sweat Connection, 2 Poles, 80 deg C, Radial Bearing, Bronze, 6-11/16 in H x 5-1/4 in W

Grundfos UP B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP N have a stainless steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
