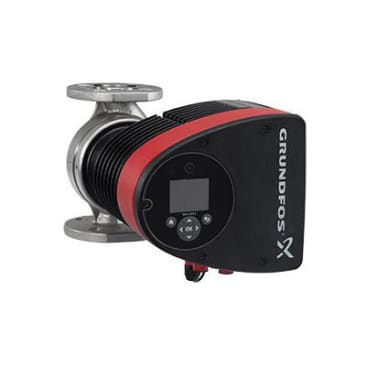

GRUNDFOS 98126862 Image 1

GRUNDFOS 98126862 MAGNA3 100-120 WET ROTOR CIRC SS 208-230V

MFR Part #: 98126862
SKU #: 1164138
Brand: Grundfos
UPC: 400006966568
Grundfos 98126862 MAGNA3 1-Head Circulator Pump, 165 gpm Flow Rate, 3.93 in Flange Inlet x 3.93 in Flange Outlet, 208 to 230 VAC, 1 ph
Heating Systems - Main Pump, Mixing Loops and Heating Surfaces, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems and Solar-Heating Systems
ASTM 351 CF8/ EN 1.4308 Pump Housing | cETLus Listed

Grundfos Circulator Pump, 1-Head, Series: MAGNA3, 165 gpm, 3.93 in Flange Inlet, 3.93 in Flange Outlet, 39.37 ft Maximum Head, 31 to 1564 W, 208 to 230 VAC, 0.32 to 6.78 A, 60 Hz, 1 ph, 174.05 psi Maximum, 30% Glass Fiber Polyethersulfone Impeller, 32 to 104 deg F Ambient, X4D, Thrust Bearing, 17.7 in H

The MAGNA3 is an innovative member of the Grundfos family of high quality circulator pumps. The MAGNA3 pumps make up a broad range of small, medium and large circulator pumps fitted with communication equipment and motors with electronic speed control based on permanent magnet (PM) and compact stator motor technology. With the MAGNA3, you can stop worrying about complicated pump settings. Simply install the pump and leave it on the factory, AutoAdapt. The MAGNA3 will automatically analyze the heating system, find the optimum setting and then continuously adjust its operation to changes in demand. The result is optimum comfort and minimum energy consumption. In addition, MAGNA3 pumps are extremely flexible and reliable and have low noise levels, long life and no maintenance requirements. They are fitted with IR communication and can offer external control and monitoring via expansion modules.

Product Details

Grundfos Circulator Pump, 1-Head, Series: MAGNA3, 165 gpm, 3.93 in Flange Inlet, 3.93 in Flange Outlet, 39.37 ft Maximum Head, 31 to 1564 W, 208 to 230 VAC, 0.32 to 6.78 A, 60 Hz, 1 ph, 174.05 psi Maximum, 30% Glass Fiber Polyethersulfone Impeller, 32 to 104 deg F Ambient, X4D, Thrust Bearing, 17.7 in H

The MAGNA3 is an innovative member of the Grundfos family of high quality circulator pumps. The MAGNA3 pumps make up a broad range of small, medium and large circulator pumps fitted with communication equipment and motors with electronic speed control based on permanent magnet (PM) and compact stator motor technology. With the MAGNA3, you can stop worrying about complicated pump settings. Simply install the pump and leave it on the factory, AutoAdapt. The MAGNA3 will automatically analyze the heating system, find the optimum setting and then continuously adjust its operation to changes in demand. The result is optimum comfort and minimum energy consumption. In addition, MAGNA3 pumps are extremely flexible and reliable and have low noise levels, long life and no maintenance requirements. They are fitted with IR communication and can offer external control and monitoring via expansion modules.

Attributes

Amperage Rating: 0.32 to 6.78 A
Bearing Type: Thrust
Dimensions: 17.7 in H
Enclosure Type: X4D
Flow Rate: 165 gpm
Frequency Rating: 60 Hz
Impeller Type: 30% Glass Fiber Polyethersulfone
Inlet Size: 3.93 in Flange
Maximum Head: 39.37 ft
Maximum Pressure: 174.05 psi
Outlet Size: 3.93 in Flange
Phase: 1
Power Rating: 31 to 1564 W
Series: MAGNA3
Temperature Rating: 32 to 104 deg F Ambient
Type: 1-Head
Voltage Rating: 208 to 230 VAC

Features

  • Flow limit
  • FlowAdapt - a combination of the AutoAdapt control mode and flow limit function
  • Built-in Grundfos differential-pressure and temperature sensor
  • Proportional pressure control
  • Constant pressure control
  • Constant temperature control
  • Constant-curve duty
  • Maximum or minimum curve duty
  • Automatic night setback
  • Self-explanatory user interface with TFT display and high quality silicone push-buttons
  • Heat energy monitor
  • Wireless multi pump function
  • 17-3/4 in L port-to-port
  • Standard flange
  • Stainless steel pump housing
