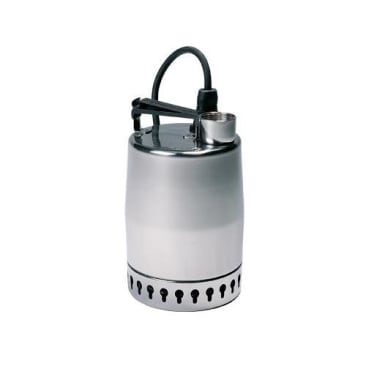

GRUNDFOS 013DC201 Image 1

GRUNDFOS 013DC201 UNILIFT KP350-M-1 115V 25FT STAINLESS STEEL DRAINAGE PUMP

MFR Part #: 013DC201
SKU #: 1267418
Brand: Grundfos
UPC: 400051180797
Grundfos 013DC201 Unilift KP 1-Stage Submersible Drainage Pump, 115 VAC, 1-1/4 in NPT Outlet, 304 Stainless Steel, 7.5 A, 1 Phase
85700017 Motor
Water and Rainwater in Horticulture, Water from Rivers and Lakes, Rainwater, Drainage Water and Water From Flooding, Water for Filling/Emptying Containers, Ponds, Tanks, Effluents From Showers, Washing Machines and Sinks Below Sewer Level, Pool Water, Ditch Drainage Water, Groundwater (Lowering Applications), Domestic Effluents from Septic and Sludge-Treating Systems, Effluents from Viaducts, Underpasses and Drainage Water from Garage Sprinkler Systems
CE Certified | CSA Certified | cULus Listed | C-TICK | LGA | VDE | GS | EMV | GOST | UL Listed

Grundfos, 013DC201, Submersible Drainage Pump, 1-Stage, Series: Unilift KP, 30.8 gpm Flow Rate, 1-1/4 in NPT Outlet, 31.17 ft Maximum Head, 115 VAC, 7.5 A, 60 Hz Frequency, 1 ph, 2900 rpm Motor, 304 Stainless Steel Semi-Open Impeller, Freestanding Mounting, IP68 Enclosure, Water Lubricated Bearing, 304 Stainless Steel

Unilift KP pumps are submersible drainage pumps suitable for both temporary and permanent free-standing installation. They can be used for pumping drain water or grey wastewater. They are also suitable for installation in collecting tanks. The Unilift KP is a single-stage drainage pump with semi-open impeller, designed for the pumping of drain water and grey wastewater. All Unilift KP pumps can be supplied with or without a level switch. The variants are designated as A, AV or M, for automatic or manual operation. The Unilift KP-AV variant for narrow pits is supplied with a non-return flap valve for installation in the outlet. The strainer is clipped onto the pump housing. The Unilift KP. Single-stage, submersible, stainless steel drainage pump in a robust design with upward-pointing discharge port positioned on the top of the pump. The outer casing is made in one piece. The mains cable and the cable of the level switch are both connected to a single, vulcanized, water-tight plug which is inserted in a socket on the hermetically-sealed stator housing. The motor is a single- or three-phase synchronous canned motor with liquid-filled rotor chamber and water-lubricated bearings.

Product Details

Grundfos, 013DC201, Submersible Drainage Pump, 1-Stage, Series: Unilift KP, 30.8 gpm Flow Rate, 1-1/4 in NPT Outlet, 31.17 ft Maximum Head, 115 VAC, 7.5 A, 60 Hz Frequency, 1 ph, 2900 rpm Motor, 304 Stainless Steel Semi-Open Impeller, Freestanding Mounting, IP68 Enclosure, Water Lubricated Bearing, 304 Stainless Steel

Unilift KP pumps are submersible drainage pumps suitable for both temporary and permanent free-standing installation. They can be used for pumping drain water or grey wastewater. They are also suitable for installation in collecting tanks. The Unilift KP is a single-stage drainage pump with semi-open impeller, designed for the pumping of drain water and grey wastewater. All Unilift KP pumps can be supplied with or without a level switch. The variants are designated as A, AV or M, for automatic or manual operation. The Unilift KP-AV variant for narrow pits is supplied with a non-return flap valve for installation in the outlet. The strainer is clipped onto the pump housing. The Unilift KP. Single-stage, submersible, stainless steel drainage pump in a robust design with upward-pointing discharge port positioned on the top of the pump. The outer casing is made in one piece. The mains cable and the cable of the level switch are both connected to a single, vulcanized, water-tight plug which is inserted in a socket on the hermetically-sealed stator housing. The motor is a single- or three-phase synchronous canned motor with liquid-filled rotor chamber and water-lubricated bearings.

Attributes

Amperage Rating: 7.5 A
Bearing Type: Water Lubricated
Enclosure Type: IP68
Flow Rate: 30.8 gpm
Frequency Rating: 60 Hz
Impeller Type: 304 Stainless Steel Semi-Open
Material: 304 Stainless Steel
Maximum Head: 31.17 ft
Motor Speed: 2900 rpm
Mounting Type: Freestanding
Outlet Size: 1-1/4 in NPT
Phase: 1
Series: Unilift KP
Type: 1-Stage
Voltage Rating: 115 VAC

Features

  • Manual operation
  • Simple installation
  • Reliability, service and maintenance-free
  • Without level switch
