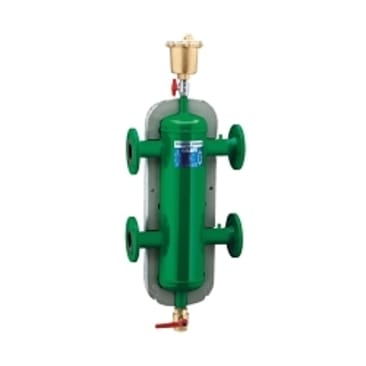

CALEFFI 548062A HYDRO SEPARATOR 2-1/2IN FLGD
Product Details
Attributes
Features
Resources
Caleffi Hydraulic Separator, Series: 548, 2-1/2 in Nominal, Flange, 150 psi Working, 32 to 210 deg F, 80 gpm, 50 % Maximum Percentage of Glycol, Polyurethane Foam Inner/Embossed Aluminum Outer Insulation, Steel, 13-3/4 in W
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interrupt flow in another. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Rigid closed cell expanded polyurethane foam
Product Details
Caleffi Hydraulic Separator, Series: 548, 2-1/2 in Nominal, Flange, 150 psi Working, 32 to 210 deg F, 80 gpm, 50 % Maximum Percentage of Glycol, Polyurethane Foam Inner/Embossed Aluminum Outer Insulation, Steel, 13-3/4 in W
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interrupt flow in another. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
Attributes
Features
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Rigid closed cell expanded polyurethane foam
