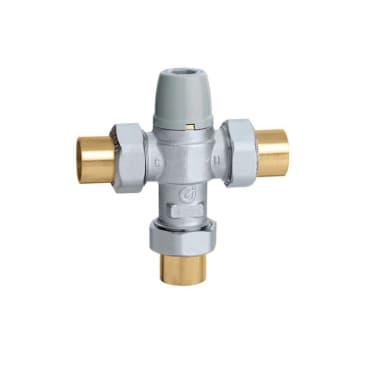

CALEFFI 521349A Image 1

CALEFFI 521349A 1/2 SWT SCALD PROT 3-WAY THERMO MIXING VALVE

MFR Part #: 521349A
SKU #: 1133175
Brand: Caleffi
UPC: 8016615961843
Caleffi 521349A 3-Way Scald Protection Point-of-Use Thermostatic Mixing Valve With Check Valve, 1/2 in, C, 150 psi, 0.5 gpm, Brass Body
2 Years
Residential Point of Use (scald protection) Domestic Water Systems
ANSI/NSF 372-2011 | ASSE 1070 | ASME A112.1070 | CSA B125.70-2015 | CSA B125.3-2012 | FM 21654 | IPC/IRC/UPC and NPC Compliance | ISO 9001 | Low Lead Certified by ICC-ES | File PMG-13 | NSF/ANSI 372 - 2016 Drinking Water System Components - Lead Content | Reduction of Lead in Drinking Water Act | California Health and Safety Code 116875 S.3874 | Reduction of Lead in Drinking Water Act

Caleffi Thermostatic Mixing Valve, 3-Way Scald Protection Point-of-Use, Series: 5213, 1/2 in Nominal, C, 150 psi, 85 to 120 deg F, 0.5 gpm, Media: Water, Brass Body, EPDM Seal, 4-5/8 in L x 5-7/16 in W

Adjustable thermostatic and pressure balanced mixing valve for point-of-use where the user must be protected from the danger of scalding caused by hot water with locking set point. Complete with check valves on both hot and cold inlets.

Product Details

Caleffi Thermostatic Mixing Valve, 3-Way Scald Protection Point-of-Use, Series: 5213, 1/2 in Nominal, C, 150 psi, 85 to 120 deg F, 0.5 gpm, Media: Water, Brass Body, EPDM Seal, 4-5/8 in L x 5-7/16 in W

Adjustable thermostatic and pressure balanced mixing valve for point-of-use where the user must be protected from the danger of scalding caused by hot water with locking set point. Complete with check valves on both hot and cold inlets.

Attributes

Flow Rate: .5 gpm
Temperature Rating: 85 to 120 deg F
Body Material: Brass
End Style: C
Media: Water
Nominal Size: 1/2 in
Pressure Rating: 150 psi
Softgoods Material: EPDM Seal

Features

  • Anti-scale materials prevent scaling on internal sliding parts, that reduces jamming caused by lime deposits, assuring reliable, constant temperature setpoint and long, trouble-free operating life
  • Adjustable thermostatic and pressure balanced mixing valve for point-of-use where the user must be protected from the danger of scalding caused by hot water with locking set point
  • Complete with check valves on both hot and cold inlets
  • <0.25% lead content brass body
