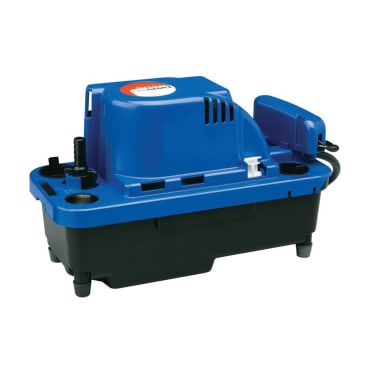

LITTLE GIANT 554530 VCMX-20ULS
MFR Part #: 554530
SKU #: 1153862
Brand: Little Giant®
UPC: 010121120709
Please note this item is discontinued (order fulfillment will depend on stock availability): Little Giant® NXTGen™ 554530 VCMX-20 Automatic Condensate Removal Pump, 84 gph Flow Rate, 1-1/8 in Inlet x 3/8 in OD Barbed Outlet, 21 ft Shutoff Head, 93 W Power Rating
For removal of condensate from air conditioners, high efficiency gas furnace condensation and condensing boilers
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® NXTGen™ Condensate Removal Pump, Automatic, Series: VCMX-20, 84 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 21 ft Shutoff Head, 93 W, 1.5 A 115 VAC 60 Hz 1/30 hp, 9.1 psi Maximum, Wall Mount, 140 deg F, ABS, 10.2 in L x 4.8 in W x 6.5 in H
Clearance Items:
Clearance
Country Of Origin:
Mexico
Flow Rate:
84 gph
Dimensions:
10.2 in L x 4.8 in W x 6.5 in H
Electrical Ratings:
1.5 A 115 VAC 60 Hz 1/30 hp
Inlet Size:
1-1/8 in
Material:
ABS
Maximum Pressure:
9.1 psi
Mounting Type:
Wall
Outlet Size:
3/8 in OD Barbed
Power Rating:
93 W
Series:
VCMX-20
Shutoff Head:
21 ft
Temperature Rating:
140 deg F
Type:
Automatic
- External test/run lever
- Slim footprint
- Vertical centrifugal pump design
- For models with safety overflow switch - dual function NO and NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed 1/4-turn quick release, locking discharge adapter with built-in check valve
- Rubber feet for vibration/noise dampening
- Anti-sweat tank sleeve included on select models and available separately for all others
- (3) 1-1/8 in Dia inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without safety overflow switch)
- Recessed tank sump
- Oil resistant tank and check valve
- Thermally protected, fan cooled motor
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS volute, polypropylene tank, impeller, ABS switch float, motor cover, acetal check valve
Product Details
Little Giant® NXTGen™ Condensate Removal Pump, Automatic, Series: VCMX-20, 84 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 21 ft Shutoff Head, 93 W, 1.5 A 115 VAC 60 Hz 1/30 hp, 9.1 psi Maximum, Wall Mount, 140 deg F, ABS, 10.2 in L x 4.8 in W x 6.5 in H
Attributes
Clearance Items: Clearance
Country Of Origin: Mexico
Flow Rate: 84 gph
Dimensions: 10.2 in L x 4.8 in W x 6.5 in H
Electrical Ratings: 1.5 A 115 VAC 60 Hz 1/30 hp
Inlet Size: 1-1/8 in
Material: ABS
Maximum Pressure: 9.1 psi
Mounting Type: Wall
Outlet Size: 3/8 in OD Barbed
Power Rating: 93 W
Series: VCMX-20
Shutoff Head: 21 ft
Temperature Rating: 140 deg F
Type: Automatic
Features
- External test/run lever
- Slim footprint
- Vertical centrifugal pump design
- For models with safety overflow switch - dual function NO and NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed 1/4-turn quick release, locking discharge adapter with built-in check valve
- Rubber feet for vibration/noise dampening
- Anti-sweat tank sleeve included on select models and available separately for all others
- (3) 1-1/8 in Dia inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without safety overflow switch)
- Recessed tank sump
- Oil resistant tank and check valve
- Thermally protected, fan cooled motor
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS volute, polypropylene tank, impeller, ABS switch float, motor cover, acetal check valve
