LITTLE GIANT 518200 PE-1
MFR Part #: 518200
SKU #: 1153782
Brand: Little Giant®
UPC: 010121182004

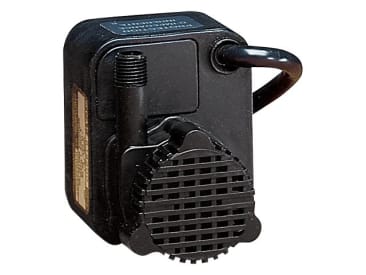

Little Giant® 518200 PE-1 Direct Drive Epoxy Encapsulated Small Submersible Pump, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/125 hp, Polyester
For water transfer or recirculation and water displays
cCSAus Certified | UL Listed
Product Details
Attributes
Features
Resources
Little Giant® Submersible Pump, Direct Drive Epoxy Encapsulated Small, Series: PE-1, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/125 hp, 115 V, 0.6 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Polyester, 3.5 in L x 2.8 in W x 3.6 in H Dimensions
Country Of Origin:
Mexico
Flow Rate:
170 gph
Horsepower:
1/125 hp
Voltage Rating:
115 V
Amperage Rating:
.6 A
Dimensions:
3.5 in L x 2.8 in W x 3.6 in H
Frequency Rating:
60 Hz
Impeller Type:
Polypropylene
Material:
Polyester
Maximum Pressure:
3 psi
Outlet Size:
1/4 in MNPT
Series:
PE-1
Temperature Rating:
120 deg F
Type:
Direct Drive Epoxy Encapsulated Small
- 1/125 hp epoxy encapsulated, direct drive motor
- Designed for continuous duty, submersible use only
- Polypropylene volute
- Nitrile shaft seal
- Snap-off screen covers intake
- Impedance protected
Product Details
Little Giant® Submersible Pump, Direct Drive Epoxy Encapsulated Small, Series: PE-1, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/125 hp, 115 V, 0.6 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Polyester, 3.5 in L x 2.8 in W x 3.6 in H Dimensions
Attributes
Country Of Origin: Mexico
Flow Rate: 170 gph
Horsepower: 1/125 hp
Voltage Rating: 115 V
Amperage Rating: .6 A
Dimensions: 3.5 in L x 2.8 in W x 3.6 in H
Frequency Rating: 60 Hz
Impeller Type: Polypropylene
Material: Polyester
Maximum Pressure: 3 psi
Outlet Size: 1/4 in MNPT
Series: PE-1
Temperature Rating: 120 deg F
Type: Direct Drive Epoxy Encapsulated Small
Features
- 1/125 hp epoxy encapsulated, direct drive motor
- Designed for continuous duty, submersible use only
- Polypropylene volute
- Nitrile shaft seal
- Snap-off screen covers intake
- Impedance protected
