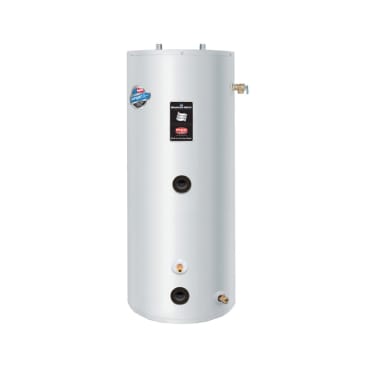

BRADFORD SW280L 71USG COMMERCIAL INDIRECT WATER HEATER
MFR Part #: SW280L
SKU #: 1256899
Brand: Bradford White®
UPC: 671632337262
Bradford White® SW280L PowerStor Series® Single-Wall Indirect Water Heater, 157000 Btu/hr Heating, 75 gal Tank, Domestic
Limited Lifetime Tank and Heat Exchanger Warranties/6-Year Limited Warranty on Component Parts
Temperature and Pressure Relief Valve
Residential Applications
AHRI Certified|ASHRAE 90.1b|CEC Listed|CSA LLC - Low Lead Content Approved|cETLus Listed|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
Bradford White® Indirect Water Heater, Single-Wall, Series: PowerStor Series®, 157000 Btu/hr Heating, 75 gal Tank, 13.7 gpm, 3/4 in NPT Water Connection, Wall Mount, 150 psi, Ultra Low Nox: No, Steel, 22 in Dia x 59 in H, Domestic
This ingenious model was engineered to provide one of the lowest pressure drops, the highest hot water output and the highest amount of effective actual heat transfer area of any indirect fired water heater in the industry.
Country Of Origin:
US
Dimensions:
22 in Dia x 59 in H
Flow Rate:
13.7 gpm
Heating Capacity:
157000 Btu/hr
Tank Capacity:
75 gal
Type:
Single-Wall
Domestic/Import:
Domestic
Material:
Steel
Mounting Type:
Wall
Pressure Rating:
150 psi
Series:
PowerStor Series®
Ultra Low NOx:
No
Water Connection:
3/4 in NPT
Water Heater Type:
Gas
- Heat exchanger - Single wall 1-1/2 in OD glass coated (Vitraglas®) carbon steel coil
- The coil has a heat transfer area of 14.2 sq-ft and a stored water volume of 2.7 gal, maximum supply temperature from the boiler must not exceed 240 deg F
- Factory installed Hydrojet® total performance system - Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
- Immersed adjustable Honeywell aquastat - Fast acting immersion aquastat for automatic temperature control (adjustable from 80 to 160 deg F)
- Supply and return connections - 1 in FNPT connections are located on the front for both the boiler collector supply and return
- Insulation system - 2 in non-CFC foam insulation covers the sides and top of the tank, reducing heat loss
- This results in less energy consumption, improved efficiencies and jacket rigidity
- Potable water connections - Factory installed true dielectric fittings extend water heater life and eases installation
- Three protective aluminum anode rods - Provide added protection against corrosion for long-term, trouble-free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Low restriction brass drain valve - Durable tamper proof design
- AHRI certified - These water heaters are rated by the air-conditioning, heating and refrigeration institute to provide accurate performance data within the standards of the certification
- This certification provides a recognized standard for proper comparison of hydronic appliances
Product Details
Bradford White® Indirect Water Heater, Single-Wall, Series: PowerStor Series®, 157000 Btu/hr Heating, 75 gal Tank, 13.7 gpm, 3/4 in NPT Water Connection, Wall Mount, 150 psi, Ultra Low Nox: No, Steel, 22 in Dia x 59 in H, Domestic
This ingenious model was engineered to provide one of the lowest pressure drops, the highest hot water output and the highest amount of effective actual heat transfer area of any indirect fired water heater in the industry.
Attributes
Country Of Origin: US
Dimensions: 22 in Dia x 59 in H
Flow Rate: 13.7 gpm
Heating Capacity: 157000 Btu/hr
Tank Capacity: 75 gal
Type: Single-Wall
Domestic/Import: Domestic
Material: Steel
Mounting Type: Wall
Pressure Rating: 150 psi
Series: PowerStor Series®
Ultra Low NOx: No
Water Connection: 3/4 in NPT
Water Heater Type: Gas
Features
- Heat exchanger - Single wall 1-1/2 in OD glass coated (Vitraglas®) carbon steel coil
- The coil has a heat transfer area of 14.2 sq-ft and a stored water volume of 2.7 gal, maximum supply temperature from the boiler must not exceed 240 deg F
- Factory installed Hydrojet® total performance system - Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
- Immersed adjustable Honeywell aquastat - Fast acting immersion aquastat for automatic temperature control (adjustable from 80 to 160 deg F)
- Supply and return connections - 1 in FNPT connections are located on the front for both the boiler collector supply and return
- Insulation system - 2 in non-CFC foam insulation covers the sides and top of the tank, reducing heat loss
- This results in less energy consumption, improved efficiencies and jacket rigidity
- Potable water connections - Factory installed true dielectric fittings extend water heater life and eases installation
- Three protective aluminum anode rods - Provide added protection against corrosion for long-term, trouble-free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Low restriction brass drain valve - Durable tamper proof design
- AHRI certified - These water heaters are rated by the air-conditioning, heating and refrigeration institute to provide accurate performance data within the standards of the certification
- This certification provides a recognized standard for proper comparison of hydronic appliances
