EEMAX HATB007240 AUTO 7.2KW 3/4IN FNPT INLEX 3/4IN MNPT
MFR Part #: HATB007240
SKU #: 1174079
Brand: Eemax™
UPC: 091654920561

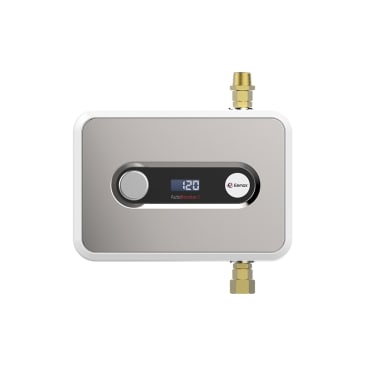

Eemax™ HATB007240 AutoBooster™ Electric Tankless Water Heater With (1) Aerator, 240 VAC, 7200 W, 1 ph, 3/4 in FNPT x 3/4 in MNPT Water, 30 A, Commercial/Residential/Dual: Commercial
1 Year Limited Warranty For Parts/5 Years Limited on Leaks
Shopping Mall and Retail Outlets, Schools and All Other Public Buildings, Office and Tenant Spaces, Commercial Builds Such as Restaurants and Service Stations, Modular Buildings, Office and Trailers, Concession Stands and Food Service Locations and Any Remote Sink That Does Not Have Hot Water
ANSI/NSF 372 by WQA | cETLus Listed | CSA Certified | cUL Listed | Patent #4762980/4960976 | UL 499
Product Details
Attributes
Features
Resources
Eemax™ Electric Tankless Water Heater With (1) Aerator, Series: AutoBooster™, 240 VAC, 30 A, 7200 W, 1 ph, 0.3 gpm, 3/4 in FNPT x 3/4 in MNPT Water Connection, Energy Factor: 0.99, 10 AWG Wire, Wall Mount, 25 to 150 psi, 80 to 140 deg F, ASME Yes/No: No, 11-1/2 in W x 3-3/4 in D x 8 in H, Commercial Commercial/Residential/Dual, Domestic
Amperage Rating:
30 A
ASME Yes/No:
No
Commercial/Residential/Dual:
Commercial
Country Of Origin:
US
Dimensions:
11-1/2 in W x 3-3/4 in D x 8 in H
Domestic/Import:
Domestic
Energy Factor:
.99
Flow Rate:
.3 gpm
Heating Capacity:
7.2 kW
Mounting Type:
Wall
Phase:
1
Power Rating:
7200 W
Pressure Rating:
25 to 150 psi
Series:
AutoBooster™
Temperature Rating:
80 to 140 deg F
Voltage Rating:
240 VAC
Water Connection:
3/4 in FNPT x 3/4 in MNPT
Water Heater Type:
Electric
Wire Size:
10 AWG
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Select models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow
- Easy installation - Simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- 0.3 gpm turn-on
- Immersion element
- Bottom inlet top outlet plumbing configuration
- Pre-heated or cold water inlet
- Replaceable cartridge insert heating element
Product Details
Eemax™ Electric Tankless Water Heater With (1) Aerator, Series: AutoBooster™, 240 VAC, 30 A, 7200 W, 1 ph, 0.3 gpm, 3/4 in FNPT x 3/4 in MNPT Water Connection, Energy Factor: 0.99, 10 AWG Wire, Wall Mount, 25 to 150 psi, 80 to 140 deg F, ASME Yes/No: No, 11-1/2 in W x 3-3/4 in D x 8 in H, Commercial Commercial/Residential/Dual, Domestic
Attributes
Amperage Rating: 30 A
ASME Yes/No: No
Commercial/Residential/Dual: Commercial
Country Of Origin: US
Dimensions: 11-1/2 in W x 3-3/4 in D x 8 in H
Domestic/Import: Domestic
Energy Factor: .99
Flow Rate: .3 gpm
Heating Capacity: 7.2 kW
Mounting Type: Wall
Phase: 1
Power Rating: 7200 W
Pressure Rating: 25 to 150 psi
Series: AutoBooster™
Temperature Rating: 80 to 140 deg F
Voltage Rating: 240 VAC
Water Connection: 3/4 in FNPT x 3/4 in MNPT
Water Heater Type: Electric
Wire Size: 10 AWG
Features
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Select models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow
- Easy installation - Simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- 0.3 gpm turn-on
- Immersion element
- Bottom inlet top outlet plumbing configuration
- Pre-heated or cold water inlet
- Replaceable cartridge insert heating element
