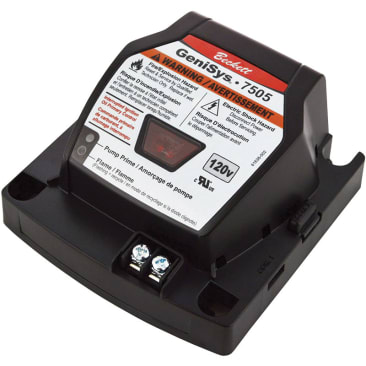

BECKETT 7505P152MU 120V PRIMARY CONTROL
Product Details
Attributes
Features
Resources
Beckett® GeniSys™ Oil Burner Control, Series: 7505, 102 to 132 VAC, 100 mA, 60 Hz, 15 s Lockout Time, -40 to150 deg F, Interrupted/Intermittent Duty Ignition, Motor Specifications: 120 VAC, 10 FLA, 60 LRA
The Beckett® GeniSys™ advanced burner control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition and it has a 15 s lockout time.
- Water-resistant
- Thermostat and boiler control compatible
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
- Technician pump prime mode
- Two communication ports for adding alarm contacts, programming display and/or future wireless communications
Product Details
Beckett® GeniSys™ Oil Burner Control, Series: 7505, 102 to 132 VAC, 100 mA, 60 Hz, 15 s Lockout Time, -40 to150 deg F, Interrupted/Intermittent Duty Ignition, Motor Specifications: 120 VAC, 10 FLA, 60 LRA
The Beckett® GeniSys™ advanced burner control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition and it has a 15 s lockout time.
Attributes
Features
- Water-resistant
- Thermostat and boiler control compatible
- Customizable pre-time and post-time
- Three status lights for system monitoring and diagnostics
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
- Technician pump prime mode
- Two communication ports for adding alarm contacts, programming display and/or future wireless communications
