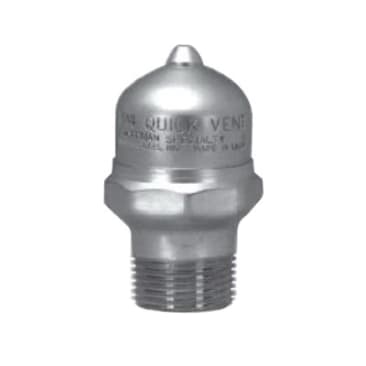

HOFFMAN 4 AIR VENT THERMOSTATIC STEAM
MFR Part #:Â 401416
SKU #:Â 0451065
Brand:Â Bell & Gossett
UPC:Â 751875018279
Bell & Gossett Hoffman Specialty® 401416 Quick Valve, 1/2 x 3/4 in Nominal, MNPT x FNPT Connection, 25 psig Working, 140 to 240 deg F, Steel
For special steam vents
cRUus Listed | cULus Listed | FM Approved
Product Details
Attributes
Features
Resources
Bell & Gossett Hoffman Specialty® Quick Valve, 1/2 x 3/4 in Nominal, MNPT x FNPT Connection, 25 psig Working, 140 to 240 deg F, Steel, 1-1/2 in W x 2-5/8 in H Dimensions
Connection Type:
MNPT x FNPT
Dimensions:
1-1/2 in W x 2-5/8 in H
Material:
Steel
Nominal Size:
1/2 x 3/4 in
Temperature Rating:
140 to 240 deg F
Working Pressure:
25 psig
- Thermostatic air vent
- For steam systems and process equipment
- Operates on temperature change only, does not close against water
- Must be installed 6 to 10 in above horizontal return and 18 in above the boiler water line
- 1/2 in FNPT and 3/4 in MNPT straight shank
Product Details
Bell & Gossett Hoffman Specialty® Quick Valve, 1/2 x 3/4 in Nominal, MNPT x FNPT Connection, 25 psig Working, 140 to 240 deg F, Steel, 1-1/2 in W x 2-5/8 in H Dimensions
Attributes
Connection Type:Â MNPT x FNPT
Dimensions:Â 1-1/2 in W x 2-5/8 in H
Material:Â Steel
Nominal Size:Â 1/2 x 3/4 in
Temperature Rating:Â 140 to 240 deg F
Working Pressure:Â 25 psig
Features
- Thermostatic air vent
- For steam systems and process equipment
- Operates on temperature change only, does not close against water
- Must be installed 6 to 10 in above horizontal return and 18 in above the boiler water line
- 1/2 in FNPT and 3/4 in MNPT straight shank
