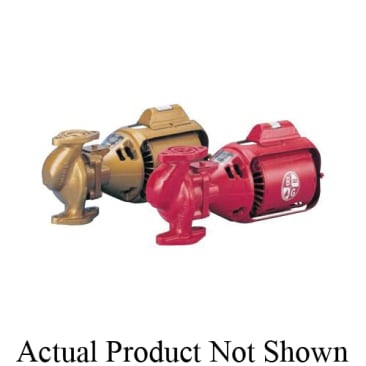

B&G 102208LF Image 1

B&G 102208LF PRAB 1/6HP LEAD FREE BOOSTER PUMP

MFR Part #: 102208LF
SKU #: 1270806
Brand: Bell & Gossett
UPC: 683328222103
Bell & Gossett 102208LF PR Series 3-Piece Booster Pump, 115 VAC, 1 ph
For hydronic heating and cooling systems, domestic water and industrial applications
CSA Certified | cUL/UL Listed | SA Registered

Bell & Gossett Booster Pump, 3-Piece, Series: PR Series, 1/6 hp, 115 VAC, 1.9 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, Centrifugal Impeller, 225 deg F, Sleeve Bearing, 15-1/4 in L x 8-1/2 in H

For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on 3-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable Bell & Gossett manufactured motor for quiet and efficient operation.

Product Details

Bell & Gossett Booster Pump, 3-Piece, Series: PR Series, 1/6 hp, 115 VAC, 1.9 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, Centrifugal Impeller, 225 deg F, Sleeve Bearing, 15-1/4 in L x 8-1/2 in H

For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on 3-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable Bell & Gossett manufactured motor for quiet and efficient operation.

Attributes

Amperage Rating1.9 A
Bearing TypeSleeve
Dimensions15-1/4 in L x 8-1/2 in H
Frequency Rating60 Hz
Impeller TypeCentrifugal
Maximum Pressure125 psi
Motor Speed1725 rpm
Phase1
Power Rating1/6 hp
SeriesPR Series
Temperature Rating225 deg F
Type3-Piece
Voltage Rating115 VAC

Features

  • Oil lubricated circulator
  • Bronze body
  • 115V With built-in overload protection
  • Sleeve bearing, oil lubricated with replaceable resilient motor mounts
  • Noise dampening coupler
  • Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
  • Long bronze sleeve bearings maintain exact shaft alignment
  • Provides for constant circulation of oil over bearing surfaces
  • Precision ground pump shaft is oversized to provide large bearing surfaces
  • Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
  • The Bell & Gossett mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
  • Centrifugal impeller prevents accumulation of air at seal faces to assure long life
  • Close impeller/body tolerances minimize water slippage and maximize efficiency
  • Potable water is supplied
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
  • Model PR AB
