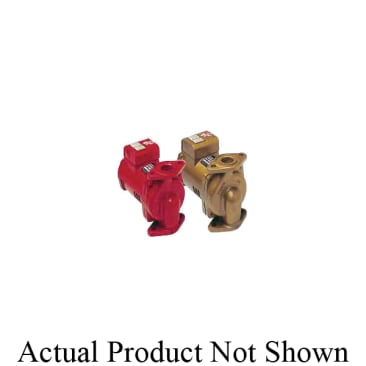

B&G 1BL065LF Image 1

B&G 1BL065LF PL 130B 115/60/1 LEAD FREE BOOSTER PUMP

MFR Part #: 1BL065LF
SKU #: 1270827
Brand: Bell & Gossett
UPC: 400051322449
Bell & Gossett 1BL065LF PL™ Booster Pump, 115 V, 1 ph
ANSI/NSF 372 | CSA Certified | cULus Listed

Bell & Gossett Booster Pump, Series: PL™, 2/5 hp, 115 V, 4.8 A, 1 ph, 150 psi Maximum, 3200 rpm Motor, 225 deg F, XL-11™ Bearing

The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Product Details

Bell & Gossett Booster Pump, Series: PL™, 2/5 hp, 115 V, 4.8 A, 1 ph, 150 psi Maximum, 3200 rpm Motor, 225 deg F, XL-11™ Bearing

The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Attributes

Amperage Rating4.8 A
Bearing TypeXL-11™
Maximum Pressure150 psi
Motor Speed3200 rpm
Phase1
Power Rating2/5 hp
SeriesPL™
Temperature Rating225 deg F
Voltage Rating115 V

Features

  • Bell & Gossett powerful, dry-motor design delivers exceptional performance
  • 25% more efficient than competition
  • Precision-machined and balanced alloy steel rotor for superior performance
  • Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses
  • Permanently oil lubricated
  • Completely maintenance free
  • Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
  • Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
  • Double sided stainless steel neck ring for optimum efficiency
  • 2 in NPT
