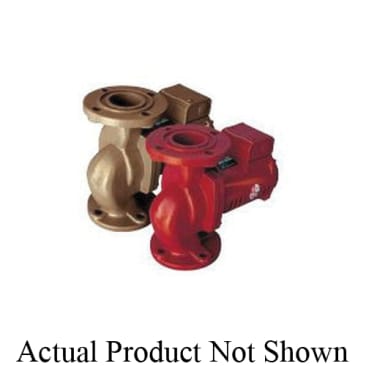

B&G 1BL034 Image 1

B&G 1BL034 CI BOOSTER L/F 115V PL-75

MFR Part #: 1BL034
SKU #: 1007180
Brand: Bell & Gossett
UPC: 683328210841
Bell & Gossett PL™ 1BL034 PL Series Maintenance-Free Booster Pump, 115 VAC, 1 ph
cUL/UL Listed

Bell & Gossett PL™ Booster Pump, Maintenance-Free, Series: PL Series, 1/6 hp Power, 115 VAC, 2.1 A, 60 Hz Frequency, 1 ph ph, 150 psi Maximum, 3400 rpm Motor, Glass-Filled Noryl® Impeller, In-Line Mounting, 225 deg F, Ball Bearing, 9-15/16 in L x 8-1/12 in L Dimensions

The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Product Details

Bell & Gossett PL™ Booster Pump, Maintenance-Free, Series: PL Series, 1/6 hp Power, 115 VAC, 2.1 A, 60 Hz Frequency, 1 ph ph, 150 psi Maximum, 3400 rpm Motor, Glass-Filled Noryl® Impeller, In-Line Mounting, 225 deg F, Ball Bearing, 9-15/16 in L x 8-1/12 in L Dimensions

The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Attributes

Amperage Rating: 2.1 A
Bearing Type: Ball
Dimensions: 9-15/16 in L x 8-1/12 in L
Frequency Rating: 60 Hz
Impeller Type: Glass-Filled Noryl®
Maximum Pressure: 150 psi
Motor Speed: 3400 rpm
Mounting Type: In-Line
Phase: 1
Power Rating: 1/6 hp
Series: PL Series
Temperature Rating: 225 deg F
Type: Maintenance-Free
Voltage Rating: 115 VAC

Features

  • Permanently lubricated
  • Cast iron body
  • PL boosters equipped with a drip-proof motor are recommended for indoor use only
  • Bell & Gossett powerful, dry-motor design delivers exceptional performance
  • 25 percent more efficient than competition
  • Precision-machined and balanced alloy steel rotor for superior performance
  • Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses
  • XL-11™ Precision-crafted bearing system
  • Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
  • Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
  • Double sided stainless steel neck ring for optimum efficiency
  • 2 in NPT flange
  • Model PL-75
