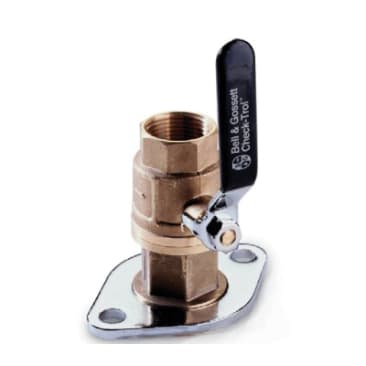

B&G 101245LF Image 2

B&G 101245LF CHECK-TROL CTF 1-1/2 NPT X FLG ADAPTER (PAIR)

MFR Part #: 101245LF
SKU #: 1270833
Brand: Bell & Gossett
UPC: 400051322500
Bell & Gossett Check-Trol™ CTF-1-1/2 101245LF Isolation Flow Control Flange, NPT x Flanged, 1-1/2 in Fitting, Brass/PTFE
CSA Certified to NSF/ANSI 372

Bell & Gossett Check-Trol™ Isolation Flow Control Flange, Model: CTF-1-1/2, NPT x Flanged Connection, 1-1/2 in Fitting, 150 psig, Brass/PTFE, 200 deg F, 4-7/16 in L

Check-Trol™ is the solution for circulator installations. Installing a Check-Trol™ on the discharge of the circulator gives you the features of a Flow Control Valve, Isolation Valve and Companion Flange. Another advantage of the Check-Trol™ is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol™ flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.

Product Details

Bell & Gossett Check-Trol™ Isolation Flow Control Flange, Model: CTF-1-1/2, NPT x Flanged Connection, 1-1/2 in Fitting, 150 psig, Brass/PTFE, 200 deg F, 4-7/16 in L

Check-Trol™ is the solution for circulator installations. Installing a Check-Trol™ on the discharge of the circulator gives you the features of a Flow Control Valve, Isolation Valve and Companion Flange. Another advantage of the Check-Trol™ is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol™ flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.

Attributes

Connection Type: NPT x Flanged
Material: Brass/PTFE, Steel
Nominal Size: 1-1/2 in
Pressure Rating: 150 psig
Type: Isolation
Dimensions: 4-7/16 in L
Finish: Polished Chrome
Fitting Size: 1-1/2 in
Lead-Free/Contains Lead: Lead-Free
Maximum Pressure: 150 psi
Model: CTF-1-1/2
Packing Material: PTFE
Pipe Size: 1-1/4 in
Seat Material: PTFE
Stem Material: Lead-Free Brass
Temperature Rating: 200 deg F

Features

  • Combines three valves in one - isolation valve, check valve and companion flange
  • Free floating flange allows easy alignment and installation of pump
  • Prevents gravity circulation
  • Isolates the circulator so you don’t need to drain the entire system
  • 50 state lead-free
