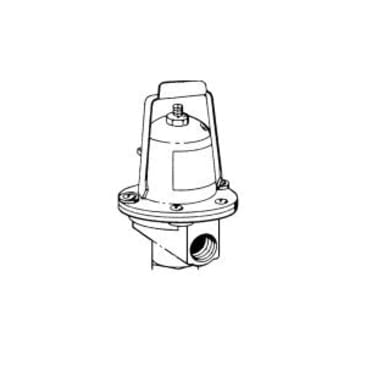

B&G 110190 1/2 BOILER FEED B38
MFR Part #:Â 110190
SKU #:Â 0520260
Brand:Â Bell & Gossett
UPC:Â 683328101903
Please note this item is discontinued (order fulfillment will depend on stock availability): Bell & Gossett 110190 Pressure Reducing Valve, 1/2 in, NPT, 10 to 25 psig, 5.5 to 6 gpm, Brass Body
For protect heating and plumbing systems
ISO 9001 Certified
Product Details
Attributes
Features
Resources
Bell & Gossett Pressure Reducing Valve, 1/2 in Nominal Size, NPT, 10 to 25 psig, 225 deg F, 5.5 to 6 gpm, Media: Gas/Oil/Water, 3-1/16 in Inlet to Outlet Length, 3-11/16 in Top to Inlet Center, Brass Body, Brass Trim, Brass Seat, 4-13/16 in L
Body Material:
Brass
Clearance Items:
Clearance
Dimensions:
4-13/16 in L
End Style:
NPT
Flow Rate:
5.5 to 6 gpm
Inlet to Outlet Length:
3-1/16 in
Media:
Gas/Oil/Water
Nominal Size:
1/2 in
Pressure Range:
10 to 25 psig
Softgoods Material:
Brass Seat
Temperature Rating:
225 deg F
Top to Inlet Center:
3-11/16 in
Trim Material:
Brass
- They are factory set at specified limits although adjustment is easily made
- Equipped with built-in-strainer and low inlet pressure check valve
- Cast brass body, EPT with special insert diaphragm, EPDM check valve, brass seat, brass with EPDM insert stem, brass valve plate, stainer and strainer nut
- Valve seat, strainer and stem must be removable and of noncorrosive material
- 12 psig factory setting pressure, 125 psi max working pressure
- To protect heating and plumbing systems against excessive line pressures
Product Details
Bell & Gossett Pressure Reducing Valve, 1/2 in Nominal Size, NPT, 10 to 25 psig, 225 deg F, 5.5 to 6 gpm, Media: Gas/Oil/Water, 3-1/16 in Inlet to Outlet Length, 3-11/16 in Top to Inlet Center, Brass Body, Brass Trim, Brass Seat, 4-13/16 in L
Attributes
Body Material:Â Brass
Clearance Items:Â Clearance
Dimensions:Â 4-13/16 in L
End Style:Â NPT
Flow Rate:Â 5.5 to 6 gpm
Inlet to Outlet Length:Â 3-1/16 in
Media:Â Gas/Oil/Water
Nominal Size:Â 1/2 in
Pressure Range:Â 10 to 25 psig
Softgoods Material:Â Brass Seat
Temperature Rating:Â 225 deg F
Top to Inlet Center:Â 3-11/16 in
Trim Material:Â Brass
Features
- They are factory set at specified limits although adjustment is easily made
- Equipped with built-in-strainer and low inlet pressure check valve
- Cast brass body, EPT with special insert diaphragm, EPDM check valve, brass seat, brass with EPDM insert stem, brass valve plate, stainer and strainer nut
- Valve seat, strainer and stem must be removable and of noncorrosive material
- 12 psig factory setting pressure, 125 psi max working pressure
- To protect heating and plumbing systems against excessive line pressures
