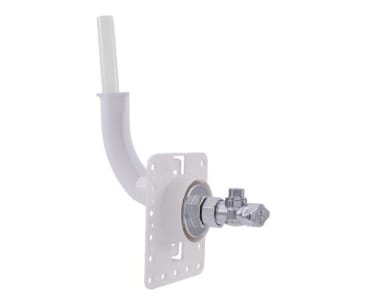

HOLDRITE HR-F-P-1 NON FIRE RATED PEX FIXTURE BOX WITH 3/8 OUTLET
MFR Part #: HR-F-P-1
SKU #: 1282393
Brand: RWC | Holdrite®
UPC: 400051586360
Holdrite® HR-F-P-1 HR-F Quarter-Turn Handle Fixture Outlet Box, 3/8 in Outlet OD Compression Outlet, ABS/DZR LF Brass
2 Years
IAPMO PS 54 | ASME A112.18.1/CSA B125.1 | NSF/ANSI 14 | NSF/ANSI/CAN 61 | NSF/ANSI/CAN 372. THIS PRODUCT MEETS THE REDUCED Q TEST STATISTICS CRITERIA OF 0.5 μg FOR LEAD PER SECTION 9.5.1.1 OF NSF/ANSI/CAN 61 | ASSE 1010 | ASTM F876 | ASTM F877 | CSA B137.5
Product Details
Attributes
Features
Holdrite®, HR-F-P-1, Fixture Outlet Box, Quarter-Turn Handle, Series: HR-F, 3/8 in Outlet, OD Compression Outlet, 125 psi Pressure, 160 deg F, ABS/DZR LF Brass, Chrome Plated, White, 8.9999 in H x 11.811 in W x 13.7795 in L Dimensions
Material:
ABS/DZR LF Brass
Outlet Size:
3/8 in
Outlet Type:
OD Compression
Color:
White
Dimensions:
8.9999 in H x 11.811 in W x 13.7795 in L
Finish:
Chrome Plated
Pressure Rating:
125 psi
Series:
HR-F
Temperature Rating:
160 deg F
Type:
Quarter-Turn Handle
- Designed for both commercial and residential use, enabling water supply valve installation during the initial construction phase
- They can be mounted to a stud with flange holes or between studs using a Hyco bar, HoldRite 170,or similar galvanized bracketing from HoldRite
- Outlet box assemblies come with a quarter-turn handle supply valve and either a 1/4 in or 3/8 in threaded compression connection
- Available with tail pieces for PEX, copper and CPVC installations
- Protective debris cover included
- Tail pieces have near 360 degree movement for installation in any orientation
- Copper & PEX tail pieces to extend beyond body for easy use of inlet pipe connection tools
- Attaches to SB1/2/3/4 brackets, 170/170-26, hyco bars or directly to studs
- The chrome lock nut complements the valve, permitting "z" axis movement to accommodate various drywall layer options and cabinet wall installations
- Standard drywall configurations handled out of the box
- Small footprint of 2.5 in sheetrock hole
Product Details
Holdrite®, HR-F-P-1, Fixture Outlet Box, Quarter-Turn Handle, Series: HR-F, 3/8 in Outlet, OD Compression Outlet, 125 psi Pressure, 160 deg F, ABS/DZR LF Brass, Chrome Plated, White, 8.9999 in H x 11.811 in W x 13.7795 in L Dimensions
Attributes
Material: ABS/DZR LF Brass
Outlet Size: 3/8 in
Outlet Type: OD Compression
Color: White
Dimensions: 8.9999 in H x 11.811 in W x 13.7795 in L
Finish: Chrome Plated
Pressure Rating: 125 psi
Series: HR-F
Temperature Rating: 160 deg F
Type: Quarter-Turn Handle
Features
- Designed for both commercial and residential use, enabling water supply valve installation during the initial construction phase
- They can be mounted to a stud with flange holes or between studs using a Hyco bar, HoldRite 170,or similar galvanized bracketing from HoldRite
- Outlet box assemblies come with a quarter-turn handle supply valve and either a 1/4 in or 3/8 in threaded compression connection
- Available with tail pieces for PEX, copper and CPVC installations
- Protective debris cover included
- Tail pieces have near 360 degree movement for installation in any orientation
- Copper & PEX tail pieces to extend beyond body for easy use of inlet pipe connection tools
- Attaches to SB1/2/3/4 brackets, 170/170-26, hyco bars or directly to studs
- The chrome lock nut complements the valve, permitting "z" axis movement to accommodate various drywall layer options and cabinet wall installations
- Standard drywall configurations handled out of the box
- Small footprint of 2.5 in sheetrock hole
