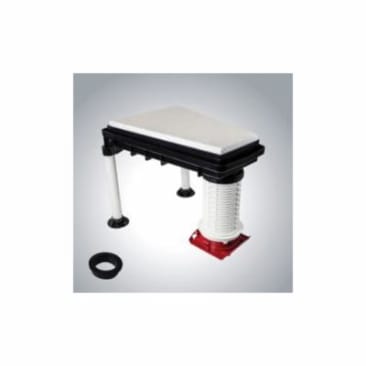

HOLDRITE HFPTB-NP-0200 HFP FIRESTOP TUB BOX 1-1/2 IPS DRAIN
Product Details
Attributes
Features
Resources
Holdrite® Tub Box, Series: HYDROFLAME™ PRO, For Pipe Size: 1-1/2 in IPS, 10-3/4 in Height, Fire Rating: 3 hr, Gray/Black, ABS
The Holdrite® HYDROFLAME™ PRO Series "Tub Box" is a UL-Listed firestop device for bathtub drains. Metallic or non-metallic drain piping can be used. Thin wall drain piping requires a rubber tub box donut (included with the #HFP-TW-0200 Kit). Nominal IPS sized drain piping does not provide a rubber donut (not included with the #HFP-NP-0200 Kit). The nominal IPS size donut is optional and can be purchased separately (#HFPTB-1.5 NP). Standard tub box assembled height is 10-3/4 in. Kit can be cut shorter or sleeve extensions #HFPE2 can be added to make the tub box taller.
- Built-in fire, smoke and gas protection
- Provides a water tight slab penetration
- Accepts 1-1/2 in PVC, ABS, and brass drain pipes using appropriate seal plug
- Allows for expansion, contraction and movement
- Built at 10-3/4 in tall
- Height can be modified in the field
- 1-1/2 in thin wall drain penetrating pipe
Product Details
Holdrite® Tub Box, Series: HYDROFLAME™ PRO, For Pipe Size: 1-1/2 in IPS, 10-3/4 in Height, Fire Rating: 3 hr, Gray/Black, ABS
The Holdrite® HYDROFLAME™ PRO Series "Tub Box" is a UL-Listed firestop device for bathtub drains. Metallic or non-metallic drain piping can be used. Thin wall drain piping requires a rubber tub box donut (included with the #HFP-TW-0200 Kit). Nominal IPS sized drain piping does not provide a rubber donut (not included with the #HFP-NP-0200 Kit). The nominal IPS size donut is optional and can be purchased separately (#HFPTB-1.5 NP). Standard tub box assembled height is 10-3/4 in. Kit can be cut shorter or sleeve extensions #HFPE2 can be added to make the tub box taller.
Attributes
Features
- Built-in fire, smoke and gas protection
- Provides a water tight slab penetration
- Accepts 1-1/2 in PVC, ABS, and brass drain pipes using appropriate seal plug
- Allows for expansion, contraction and movement
- Built at 10-3/4 in tall
- Height can be modified in the field
- 1-1/2 in thin wall drain penetrating pipe
