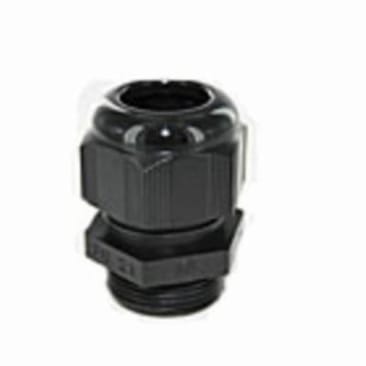

TECHSPAN RD21NR STRAIN RLF DOME CONNECTION 3/4 NPT .35-.63IN BLACK
MFR Part #: RD21NR
SKU #: 1110133
Brand: Techspan®
UPC: 776856177103
Techspan® RD21NR Dome Connector With Anti-Vibration Gland Nut, 3/4 in NPT Thread, 0.35 to 0.63 in Cable, 0.59 in L Thread, Polyamide 6
Direct Burial Cables, Fiber Optics, Computers, Control Cabinets, Instruments, Medical/Dental Equipment, Car Washes, Hot Tubs and Carpet Cleaning Machines
cUL File No E199260|UL Listed|CSA 115116 Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Dome Connector, 3/4 in NPT, 0.35 to 0.63 in Cable Dia, 1.05 in, 0.59 in Thread Length, Polyamide 6, Black
Cable Diameter:
0.35 to 0.63 in
Color:
Black
Country Of Origin:
Turkey
Hole Size:
1.05 in
Material:
Polyamide 6
Thread Length:
.59 in
Thread Size:
3/4 in NPT
- IP68, 5 bar degree of protection
- Up to 150 deg C intermittent operating temperature
- -30 deg C to 80 deg C permanent temperature range
- 1.97 in max dome length
- 1.3 in wrenching flats
- These polyamide strain relief connectors are resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral oil, animal and vegetable oil and meet IP 68 specifications for liquidtight
- No disassembly required, simply push cable or tubing through installed strain relief connector and tighten dome nut
- Neoprene seal
- Dome and flex-protecting liquidtight strain relief connectors
- 0.83 hole clearance
- 5.12 in max flex length
Product Details
Techspan® Dome Connector, 3/4 in NPT, 0.35 to 0.63 in Cable Dia, 1.05 in, 0.59 in Thread Length, Polyamide 6, Black
Attributes
Cable Diameter: 0.35 to 0.63 in
Color: Black
Country Of Origin: Turkey
Hole Size: 1.05 in
Material: Polyamide 6
Thread Length: .59 in
Thread Size: 3/4 in NPT
Features
- IP68, 5 bar degree of protection
- Up to 150 deg C intermittent operating temperature
- -30 deg C to 80 deg C permanent temperature range
- 1.97 in max dome length
- 1.3 in wrenching flats
- These polyamide strain relief connectors are resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral oil, animal and vegetable oil and meet IP 68 specifications for liquidtight
- No disassembly required, simply push cable or tubing through installed strain relief connector and tighten dome nut
- Neoprene seal
- Dome and flex-protecting liquidtight strain relief connectors
- 0.83 hole clearance
- 5.12 in max flex length
