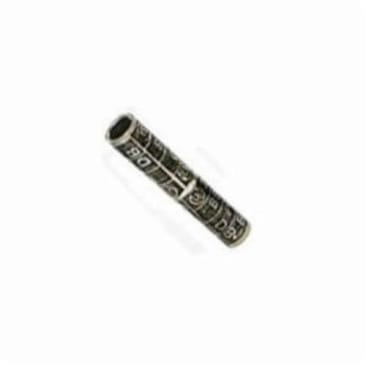

TECHSPAN BBCU4/0 Image 1

TECHSPAN BBCU4/0 LIGHT GAUGE COPPER SPLICE 4/0STR .528 PURP

MFR Part #: BBCU4/0
SKU #: 1123283
Brand: Techspan®
UPC: 77685613948
Techspan® Penn-Crimps® BBCU4/0 Type BBCU Long Barrel Crimp Splice, 4/0 AWG Stranded Copper Conductor, Die Code: 54, 3-3/8 in L
UL Listed|CSA Certified|RoHS Compliant

Techspan® Penn-Crimps® Crimp Splice, Type BBCU Long Barrel, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 3-3/8 in Length, 35 kVAC, 90 deg C, 0.528 in Wire Dia, Purple

Product Details

Techspan® Penn-Crimps® Crimp Splice, Type BBCU Long Barrel, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 3-3/8 in Length, 35 kVAC, 90 deg C, 0.528 in Wire Dia, Purple

Attributes

ColorPurple
Conductor Size4/0 AWG
Conductor TypeStranded Copper
Die Code54
Length3-3/8 in
Specifications0.528 in Wire Dia
Temperature Rating90 deg C
TypeType BBCU Long Barrel
Voltage Rating35 kVAC

Features

  • Seamless, one piece, copper construction with tin-plated assures maximum conductivity
  • Generous entrance chamfer provides easy cable insertion
  • Type BBCU has longer length barrel which permits extra crimps for addition all assurance on heavy duty loads
  • Catalogue number and conductor sizes marked on every piece insures positive identification
  • Positive cable stops insure proper insertion of conductors to full depth
  • Can be installed with existing crimping tools
  • Die color coding conforms to industry standards to insure proper connector/die selection and to provide for faster installation
  • BCU and BBCU splices are suitable for use at voltages up to 35KV provided connector is taped in accordance with accepted practices, 5 KV is maximum voltage level in all bare splice applications
