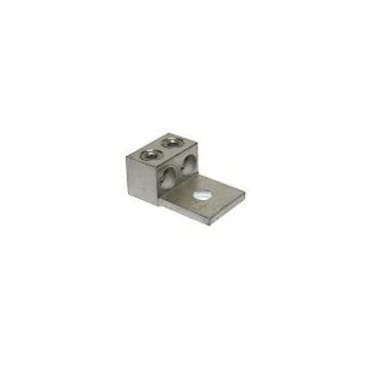

TECHSPAN L2A250 Image 1

TECHSPAN L2A250 ALUMINUM MECH LUG 6-250 2 CONNECTOR 1HOLE

MFR Part #: L2A250
SKU #: 1123270
Brand: Techspan®
UPC: 77685615896
Penn-Union™ by Techspan® Penn-Crimps® L2A250 Type L2A Solderless Mechanical Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 13/32 in Stud, 1 Bolt Holes, Aluminum Alloy
UL 486B|CSA Certified|RoHS Compliant

Penn-Union™ by Techspan® Penn-Crimps® Mechanical Lug, Type L2A Solderless, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 13/32 in Stud, 1 Bolt Holes, 1-9/16 in L x 1-1/2 in W x 1/4 in THK Tongue, Specifications: 2-Conductor, 5/8 in Hole Center to End Spacing, Aluminum Alloy, Electro-Plated Tin, 2-9/16 in L x 1-5/8 in W x 1-3/16 in H Dimensions

Product Details

Penn-Union™ by Techspan® Penn-Crimps® Mechanical Lug, Type L2A Solderless, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 13/32 in Stud, 1 Bolt Holes, 1-9/16 in L x 1-1/2 in W x 1/4 in THK Tongue, Specifications: 2-Conductor, 5/8 in Hole Center to End Spacing, Aluminum Alloy, Electro-Plated Tin, 2-9/16 in L x 1-5/8 in W x 1-3/16 in H Dimensions

Attributes

Conductor Size6 AWG to 250 kcmil
Conductor TypeAluminum/Copper
Country Of OriginUS
Dimensions2-9/16 in L x 1-5/8 in W x 1-3/16 in H
FinishElectro-Plated Tin
MaterialAluminum Alloy
Number of Bolt Holes1
Specifications2-Conductor, 5/8 in Hole Center to End Spacing
Stud Size13/32 in
Tongue Size1-9/16 in L x 1-1/2 in W x 1/4 in THK
TypeType L2A Solderless

Features

  • Body, fabricated from high strength aluminum alloy extrusion
  • Lug is 100% reusable using either screw driver or hex wrench, no special tools required
  • Maximum conductivity, compact design light weight with ultimate strength
  • Finish, electro-tin plated to assure minimum contact resistance and protection against corrosion when used with copper wire (for added protection apply Penn-Union CUAL-AID® to cable be fore installation)
  • Front entrance copper or aluminum conductors
