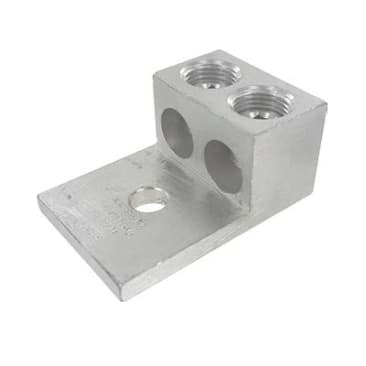

TECHSPAN L2A600 ALUMINUM MECH LUG 2-600 2 CONNECTOR 1HOLE

MFR Part #: L2A600
SKU #: 1123272
Brand: Techspan®
UPC: 77685615900
Techspan® L2A600 2-Barrel Mechanical Connector, 2 AWG to 600 kcmil Stranded/Copper/Aluminum Conductor, 1/2 in Stud, 1 Bolt Holes, 6061-T6 Aluminum
For low contact resistance and protection against corrosion
cULus 486B|UL Listed|RoHS Compliant

Techspan® Mechanical Connector, 2-Barrel, Stranded/Copper/Aluminum Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 600 VAC, 90 deg C, 6061-T6 Aluminum, Electro-Tin Plated, 3.19 in W x 2.4 in D

Product Details

Techspan® Mechanical Connector, 2-Barrel, Stranded/Copper/Aluminum Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 600 VAC, 90 deg C, 6061-T6 Aluminum, Electro-Tin Plated, 3.19 in W x 2.4 in D

Attributes

Conductor Size2 AWG to 600 kcmil
Conductor TypeStranded/Copper/Aluminum
Dimensions3.19 in W x 2.4 in D
FinishElectro-Tin Plated
Material6061-T6 Aluminum
Number of Bolt Holes1
Stud Size1/2 in
Temperature Rating90 deg C
Type2-Barrel
Voltage Rating600 VAC

Features

  • Electro-TiN plated for low contact resistance and protection against corrosion
  • East installation, no tools required
  • Connectors are reusable
