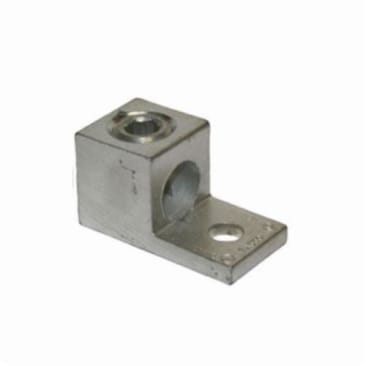

TECHSPAN LA0 ALUMINUM MECH LUG 14-1/0 1 CONNECTOR 1HOLE
MFR Part #: LA0
SKU #: 1123260
Brand: Techspan®
UPC: 77685616016
Techspan® LA0 Type LA Solderless Lug, 14 to 1/0 AWG Aluminum/Copper Conductor, 1 Bolt Holes, Aluminum Alloy
UL 486 B AL9 CU|CSA Certified|RoHS Compliant
Product Details
Attributes
Features
Techspan® Solderless Lug, Type LA, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 1 Bolt Holes, 600 VAC, Specifications: 17/64 in Dia, Aluminum Alloy, Electro-Plated Tin, 1-15/32 in L x 5/8 in W x 25/32 in H Dimensions
Conductor Size:
14 to 1/0 AWG
Conductor Type:
Aluminum/Copper
Dimensions:
1-15/32 in L x 5/8 in W x 25/32 in H
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Number of Bolt Holes:
1
Specifications:
17/64 in Dia
Type:
Type LA
Voltage Rating:
600 VAC
- Lug is 100 percent reusable using hex wrench
- Body fabricated from high strength aluminum alloy extrusion
- No special tools required
- Maximum conductivity, compact design, light weight with ultimate strength
- Electro-tin-plated to assure minimum contact resistance and protection against corrosion when used with copper wire
- 1 conductor
Product Details
Techspan® Solderless Lug, Type LA, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 1 Bolt Holes, 600 VAC, Specifications: 17/64 in Dia, Aluminum Alloy, Electro-Plated Tin, 1-15/32 in L x 5/8 in W x 25/32 in H Dimensions
Attributes
Conductor Size: 14 to 1/0 AWG
Conductor Type: Aluminum/Copper
Dimensions: 1-15/32 in L x 5/8 in W x 25/32 in H
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Number of Bolt Holes: 1
Specifications: 17/64 in Dia
Type: Type LA
Voltage Rating: 600 VAC
Features
- Lug is 100 percent reusable using hex wrench
- Body fabricated from high strength aluminum alloy extrusion
- No special tools required
- Maximum conductivity, compact design, light weight with ultimate strength
- Electro-tin-plated to assure minimum contact resistance and protection against corrosion when used with copper wire
- 1 conductor
