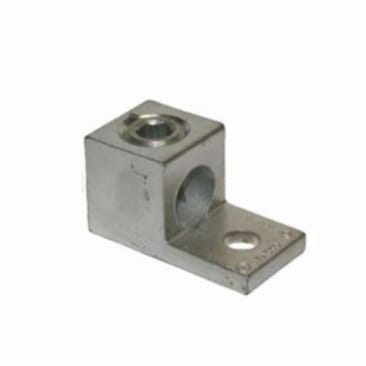

TECHSPAN LA250 ALUMINUM MECH LUG 6-250 1 CONNECTOR 1HOLE
MFR Part #: LA250
SKU #: 1123262
Brand: Techspan®
UPC: 77685616021
Techspan® LA250 Type LA Solderless Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 1 Bolt Holes, Aluminum Alloy
UL 486 B AL9 CU|CSA Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Solderless Lug, Type LA, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 1 Bolt Holes, 600 VAC, Specifications: 21/64 in Dia, Aluminum Alloy, Electro-Plated Tin, 2 in L x 1 in W x 1-1/8 in H Dimensions
Conductor Size:
6 AWG to 250 kcmil
Conductor Type:
Aluminum/Copper
Dimensions:
2 in L x 1 in W x 1-1/8 in H
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Number of Bolt Holes:
1
Specifications:
21/64 in Dia
Type:
Type LA
Voltage Rating:
600 VAC
- Lug is 100 percent reusable using hex wrench
- Body fabricated from high strength aluminum alloy extrusion
- No special tools required
- Maximum conductivity, compact design, light weight with ultimate strength
- Electro-tin-plated to assure minimum contact resistance and protection against corrosion when used with copper wire
- 1 conductor
Product Details
Techspan® Solderless Lug, Type LA, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 1 Bolt Holes, 600 VAC, Specifications: 21/64 in Dia, Aluminum Alloy, Electro-Plated Tin, 2 in L x 1 in W x 1-1/8 in H Dimensions
Attributes
Conductor Size: 6 AWG to 250 kcmil
Conductor Type: Aluminum/Copper
Dimensions: 2 in L x 1 in W x 1-1/8 in H
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Number of Bolt Holes: 1
Specifications: 21/64 in Dia
Type: Type LA
Voltage Rating: 600 VAC
Features
- Lug is 100 percent reusable using hex wrench
- Body fabricated from high strength aluminum alloy extrusion
- No special tools required
- Maximum conductivity, compact design, light weight with ultimate strength
- Electro-tin-plated to assure minimum contact resistance and protection against corrosion when used with copper wire
- 1 conductor
