TECHSPAN LA800 ALUMINUM MECH LUG 300-800 1 CONNECTOR 1HOLE
MFR Part #: LA800
SKU #: 1123266
Brand: Techspan®
UPC: 77685616032

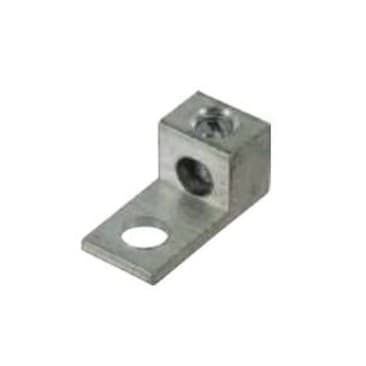

Techspan® LA800 1-Barrel Mechanical Connector, 300 to 800 kcmil Copper/Aluminum Conductor, 5/8 in Stud, 1 Bolt Holes, 6061-T6 Aluminum
For low contact resistance and protection against corrosion
Product Details
Attributes
Features
Resources
Techspan® Mechanical Connector, 1-Barrel, Copper/Aluminum Conductor, 300 to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Holes, 600 VAC, 90 deg C, 6061-T6 Aluminum, Electro-Tin Plated, 3.37 in W x 1.75 in D
Conductor Size:
300 to 800 kcmil
Conductor Type:
Copper/Aluminum
Dimensions:
3.37 in W x 1.75 in D
Finish:
Electro-Tin Plated
Material:
6061-T6 Aluminum
Number of Bolt Holes:
1
Stud Size:
5/8 in
Temperature Rating:
90 deg C
Type:
1-Barrel
Voltage Rating:
600 VAC
- Electro-TiN plated for low contact resistance and protection against corrosion
- East installation, no tools required
- Connectors are reusable
Product Details
Techspan® Mechanical Connector, 1-Barrel, Copper/Aluminum Conductor, 300 to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Holes, 600 VAC, 90 deg C, 6061-T6 Aluminum, Electro-Tin Plated, 3.37 in W x 1.75 in D
Attributes
Conductor Size: 300 to 800 kcmil
Conductor Type: Copper/Aluminum
Dimensions: 3.37 in W x 1.75 in D
Finish: Electro-Tin Plated
Material: 6061-T6 Aluminum
Number of Bolt Holes: 1
Stud Size: 5/8 in
Temperature Rating: 90 deg C
Type: 1-Barrel
Voltage Rating: 600 VAC
Features
- Electro-TiN plated for low contact resistance and protection against corrosion
- East installation, no tools required
- Connectors are reusable
