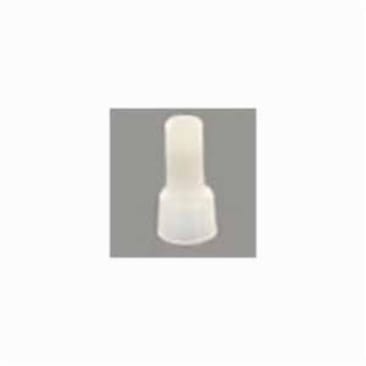

TECHSPAN NPAA1 CLOSED END CONNECTION 22-18 (100PK)
MFR Part #: NPAA1
SKU #: 1110134
Brand: Techspan®
UPC: 77685614502
Techspan® NPAA1 Closed End Connector, 22 to 18 AWG Conductor, 18 mm L, 2.6 mm Dia Opening, Polyamide 6.6, Natural
UL File No E113650 Listed|CSA File No LR68461 Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Closed End Connector, Stranded Copper Conductor, 22 to 18 AWG Conductor, 18 mm Length, 2.6 mm Opening Dia, 300 VAC, 105 deg C, Polyamide 6.6, Natural, 7.8 mm W
Color:
Natural
Conductor Size:
22 to 18 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
Taiwan
Dimensions:
7.8 mm W
Length:
18 mm
Material:
Polyamide 6.6
Opening Diameter:
2.6 mm
Temperature Rating:
105 deg C
Voltage Rating:
300 VAC
- Polyamide 66 (Nylon 66), UL 94V-2 self-extinguishing
Product Details
Techspan® Closed End Connector, Stranded Copper Conductor, 22 to 18 AWG Conductor, 18 mm Length, 2.6 mm Opening Dia, 300 VAC, 105 deg C, Polyamide 6.6, Natural, 7.8 mm W
Attributes
Color: Natural
Conductor Size: 22 to 18 AWG
Conductor Type: Stranded Copper
Country Of Origin: Taiwan
Dimensions: 7.8 mm W
Length: 18 mm
Material: Polyamide 6.6
Opening Diameter: 2.6 mm
Temperature Rating: 105 deg C
Voltage Rating: 300 VAC
Features
- Polyamide 66 (Nylon 66), UL 94V-2 self-extinguishing
