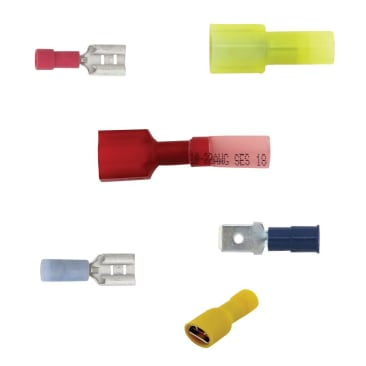

TECHSPAN FR4A187P SLIDE PVC FEMALE RD 22-18 .187 (25PK)
MFR Part #: FR4A187P
SKU #: 1159507
Brand: Techspan®
UPC: 77685615074
Techspan® FR4A187P Female Quick Disconnect, 22 to 18 AWG Conductor, 0.187 x 0.02 in Tab, PVC, Red, Insulated
UL Listed|CSA Certified|CE Marked|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Details
Attributes
Features
Techspan® Female Quick Disconnect, Copper Conductor, 22 to 18 AWG Conductor, 0.187 x 0.02 in Tab, 600 VAC, -55 to 105 deg C, PVC, Red, Insulated: Insulated
Color:
Red
Conductor Size:
22 to 18 AWG
Conductor Type:
Copper
Country Of Origin:
US
Insulated:
Insulated
Material:
PVC
Tab Size:
0.187 x 0.02 in
Temperature Rating:
-55 to 105 deg C
Voltage Rating:
600 VAC
- The tin-plated brass connector features the rolled edge design for maximum spring-like insertion/withdrawal force
- Protruding lip and beveled floor with detent aid in insertion and retention of tab and a wire stop prevents over insertion of stripped wire
- For use with copper wire only
- Pro pack
Product Details
Techspan® Female Quick Disconnect, Copper Conductor, 22 to 18 AWG Conductor, 0.187 x 0.02 in Tab, 600 VAC, -55 to 105 deg C, PVC, Red, Insulated: Insulated
Attributes
Color: Red
Conductor Size: 22 to 18 AWG
Conductor Type: Copper
Country Of Origin: US
Insulated: Insulated
Material: PVC
Tab Size: 0.187 x 0.02 in
Temperature Rating: -55 to 105 deg C
Voltage Rating: 600 VAC
Features
- The tin-plated brass connector features the rolled edge design for maximum spring-like insertion/withdrawal force
- Protruding lip and beveled floor with detent aid in insertion and retention of tab and a wire stop prevents over insertion of stripped wire
- For use with copper wire only
- Pro pack
