TECHSPAN BS4B6P B-SPADE PVC BL 16-14 #6 (20PK)
MFR Part #: BS4B6P
SKU #: 1159489
Brand: Techspan®
UPC: 77685615060

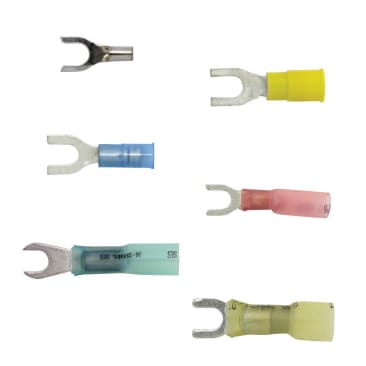

Techspan® BS4B6P Insulated Spade Crimp Terminal, 16 to 14 AWG Conductor, 0.942 in L, Brazed Seam Barrel, PVC Coated, Blue
UL Listed|CSA Certified|TUV|RoHS Compliant
Product Details
Attributes
Features
Techspan® Spade Crimp Terminal, Insulated, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, #4 to 6 Stud, 0.942 in Length, Brazed Seam Barrel, 600 VAC, Specifications: 0.032 in Stock, -55 to 105 deg C, PVC Coated, Blue, 0.291 in W Dimensions
Barrel Type:
Brazed Seam
Color:
Blue
Conductor Size:
16 to 14 AWG
Conductor Type:
Solid/Stranded Copper
Country Of Origin:
US
Dimensions:
0.291 in W
Length:
.942 in
Material:
PVC Coated
Specifications:
0.032 in Stock
Stud Size:
#4 to 6
Temperature Rating:
-55 to 105 deg C
Type:
Insulated
Voltage Rating:
600 VAC
- PVC (Butted Seam) terminals and splices feature a rigid Polyvinyl Chloride (PVC) insulation sleeve permanently attached to butted seam barrel (in No 22 to 10) or brazed-seam PVC (in No 22 to 2)
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand "hangup", increases crimping rates and wire termination reliability
- Pro pack
Product Details
Techspan® Spade Crimp Terminal, Insulated, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, #4 to 6 Stud, 0.942 in Length, Brazed Seam Barrel, 600 VAC, Specifications: 0.032 in Stock, -55 to 105 deg C, PVC Coated, Blue, 0.291 in W Dimensions
Attributes
Barrel Type: Brazed Seam
Color: Blue
Conductor Size: 16 to 14 AWG
Conductor Type: Solid/Stranded Copper
Country Of Origin: US
Dimensions: 0.291 in W
Length: .942 in
Material: PVC Coated
Specifications: 0.032 in Stock
Stud Size: #4 to 6
Temperature Rating: -55 to 105 deg C
Type: Insulated
Voltage Rating: 600 VAC
Features
- PVC (Butted Seam) terminals and splices feature a rigid Polyvinyl Chloride (PVC) insulation sleeve permanently attached to butted seam barrel (in No 22 to 10) or brazed-seam PVC (in No 22 to 2)
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand "hangup", increases crimping rates and wire termination reliability
- Pro pack
