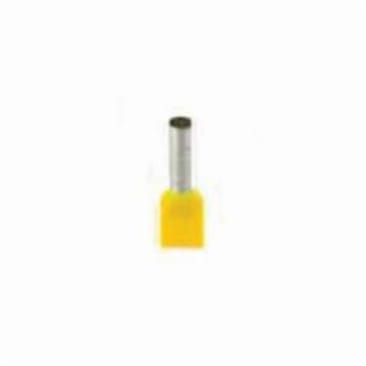

TECHSPAN FER-10-12C FERRULE 10GA 12MM YELLOW
MFR Part #: FER-10-12C
SKU #: 1114811
Brand: Techspan®
UPC: 77685610965
Techspan® FER-10-12C Single Insulated Wire Ferrule, 10 AWG Stranded Copper Conductor, 20 mm L, Polypropylene, Yellow
For termination of stranded wires
cCSAUS|CE Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 10 AWG Conductor, 20 mm Length, 12 mm L x 3.5 mm W x 0.2 mm THK Barrel, 600 VAC, 600 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Yellow
Barrel Size:
12 mm L x 3.5 mm W x 0.2 mm THK
Color:
Yellow
Conductor Size:
10 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
Taiwan
Finish:
Electro Tin Plated
Length:
20 mm
Material:
Polypropylene
Specifications:
600 sq-mm
Temperature Rating:
105 deg C
Type:
Single Insulated
Voltage Rating:
600 VAC
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 6.3 mm W x 0.3 mm thick tongue
Product Details
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 10 AWG Conductor, 20 mm Length, 12 mm L x 3.5 mm W x 0.2 mm THK Barrel, 600 VAC, 600 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Yellow
Attributes
Barrel Size: 12 mm L x 3.5 mm W x 0.2 mm THK
Color: Yellow
Conductor Size: 10 AWG
Conductor Type: Stranded Copper
Country Of Origin: Taiwan
Finish: Electro Tin Plated
Length: 20 mm
Material: Polypropylene
Specifications: 600 sq-mm
Temperature Rating: 105 deg C
Type: Single Insulated
Voltage Rating: 600 VAC
Features
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 6.3 mm W x 0.3 mm thick tongue
