TECHSPAN FER-14-8D FERRULE 14GA 8MM BLUE F/RAT-FER
MFR Part #: FER-14-8D
SKU #: 1059366
Brand: Techspan®
UPC: 77685610969

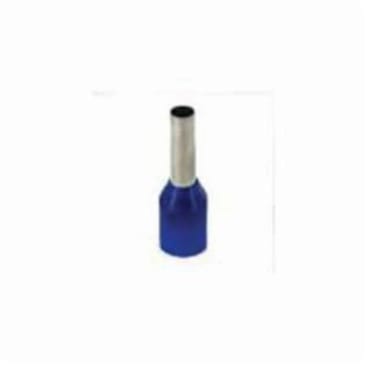

Techspan® FER-14-8D Single Insulated Wire Ferrule, 14 AWG Stranded Copper Conductor, 14 mm L, Polypropylene, Blue
For termination of stranded wires
cCSAUS|CE Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 14 AWG Conductor, 14 mm Length, 8 mm L x 2.2 mm W x 0.15 mm THK Barrel, 600 VAC, 250 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Blue
Barrel Size:
8 mm L x 2.2 mm W x 0.15 mm THK
Color:
Blue
Conductor Size:
14 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
Taiwan
Finish:
Electro Tin Plated
Length:
14 mm
Material:
Polypropylene
Specifications:
250 sq-mm
Temperature Rating:
105 deg C
Type:
Single Insulated
Voltage Rating:
600 VAC
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 4.2 mm W x 0.25 mm thick tongue
Product Details
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 14 AWG Conductor, 14 mm Length, 8 mm L x 2.2 mm W x 0.15 mm THK Barrel, 600 VAC, 250 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Blue
Attributes
Barrel Size: 8 mm L x 2.2 mm W x 0.15 mm THK
Color: Blue
Conductor Size: 14 AWG
Conductor Type: Stranded Copper
Country Of Origin: Taiwan
Finish: Electro Tin Plated
Length: 14 mm
Material: Polypropylene
Specifications: 250 sq-mm
Temperature Rating: 105 deg C
Type: Single Insulated
Voltage Rating: 600 VAC
Features
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 4.2 mm W x 0.25 mm thick tongue
