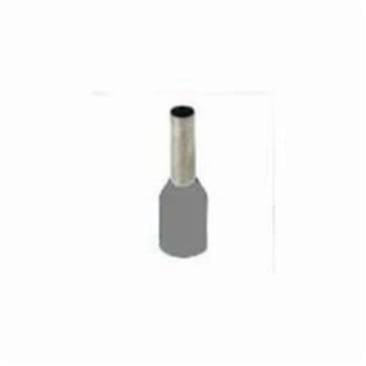

TECHSPAN FER-20-8D FERRULE 20GA 8MM GREY F/RAT-FER
MFR Part #: FER-20-8D
SKU #: 1083204
Brand: Techspan®
UPC: 77685610975
Techspan® FER-20-8D Single Insulated Wire Ferrule, 20 AWG Stranded Copper Conductor, 14 mm L, Polypropylene, Gray
For termination of stranded wires
cCSAUS|CE Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 20 AWG Conductor, 14 mm Length, 8 mm L x 1.2 mm W x 0.15 mm THK Barrel, 600 VAC, 75 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Gray
Barrel Size:
8 mm L x 1.2 mm W x 0.15 mm THK
Color:
Gray
Conductor Size:
20 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
Taiwan
Finish:
Electro Tin Plated
Length:
14 mm
Material:
Polypropylene
Specifications:
75 sq-mm
Temperature Rating:
105 deg C
Type:
Single Insulated
Voltage Rating:
600 VAC
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 2.8 mm W x 0.25 mm thick tongue
