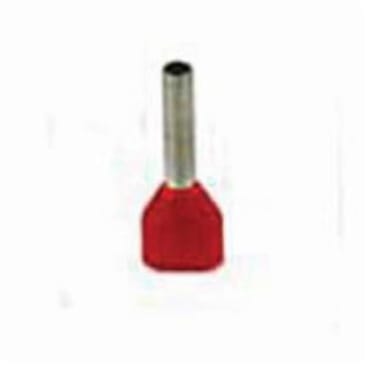

TECHSPAN FER2-18-8D DOUBLE FERRULE 18GA 8MM RED
MFR Part #: FER2-18-8D
SKU #: 1160817
Brand: Techspan®
UPC: 77685610983
Techspan® FER2-18-8D Twin Insulated Wire Ferrule, 18 AWG Stranded Copper Conductor, 15 mm L, Polypropylene, Red
For termination of stranded wires
cCSAUS|CE Certified|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Wire Ferrule, Twin Insulated, Stranded Copper Conductor, 18 AWG Conductor, 15 mm Length, 8 mm L x 1.95 mm W x 0.15 mm THK Barrel, 600 VAC, Specifications: 2 x 100 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Red
Barrel Size:
8 mm L x 1.95 mm W x 0.15 mm THK
Color:
Red
Conductor Size:
18 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
Taiwan
Finish:
Electro Tin Plated
Length:
15 mm
Material:
Polypropylene
Specifications:
2 x 100 sq-mm
Temperature Rating:
105 deg C
Type:
Twin Insulated
Voltage Rating:
600 VAC
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 5.4 mm W x 0.3 mm thick tongue
Product Details
Techspan® Wire Ferrule, Twin Insulated, Stranded Copper Conductor, 18 AWG Conductor, 15 mm Length, 8 mm L x 1.95 mm W x 0.15 mm THK Barrel, 600 VAC, Specifications: 2 x 100 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, Red
Attributes
Barrel Size: 8 mm L x 1.95 mm W x 0.15 mm THK
Color: Red
Conductor Size: 18 AWG
Conductor Type: Stranded Copper
Country Of Origin: Taiwan
Finish: Electro Tin Plated
Length: 15 mm
Material: Polypropylene
Specifications: 2 x 100 sq-mm
Temperature Rating: 105 deg C
Type: Twin Insulated
Voltage Rating: 600 VAC
Features
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 5.4 mm W x 0.3 mm thick tongue
