TECHSPAN R4C14S RING PVC YELLOW 12-10 1/4IN SM RING (100PK)
MFR Part #: R4C14S
SKU #: 1238109
Brand: Techspan®
UPC: R4C14S

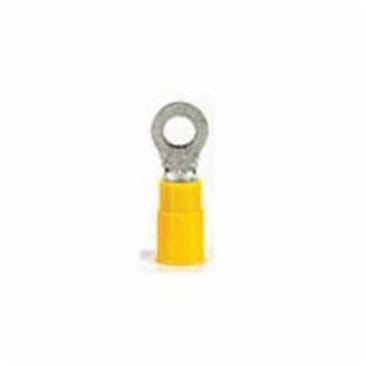

Techspan® R4C14S Ring Terminal, 12 to 10 AWG Conductor, 1.221 in L, Butted Barrel, PVC, Yellow
UL Listed|CSA Certified|TUV Rheinland|RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Ring Terminal, Stranded Copper Conductor, 12 to 10 AWG Conductor, #12 x 1/4 in Stud, 1.221 in Length, Butted Barrel, 600 VAC, 75 deg C, PVC, Yellow, 1.531 in W
Barrel Type:
Butted
Color:
Yellow
Conductor Size:
12 to 10 AWG
Conductor Type:
Stranded Copper
Country Of Origin:
US
Dimensions:
1.531 in W
Length:
1.221 in
Material:
PVC
Stud Size:
#12 x 1/4 in
Temperature Rating:
75 deg C
Voltage Rating:
600 VAC
- PVC (butted seam) terminals and splices feature a rigid polyvinyl chloride (PVC) insulation sleeve permanently attached to butted seam barrel
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand hang-up, increases crimping rates and wire termination reliability
- Terminals and splices accept maximum 0.25 in inside diameter wire, 0.04 stock
- PVC plastic insulated sleeve
- -55 to 105 deg C operating temperature
Product Details
Techspan® Ring Terminal, Stranded Copper Conductor, 12 to 10 AWG Conductor, #12 x 1/4 in Stud, 1.221 in Length, Butted Barrel, 600 VAC, 75 deg C, PVC, Yellow, 1.531 in W
Attributes
Barrel Type: Butted
Color: Yellow
Conductor Size: 12 to 10 AWG
Conductor Type: Stranded Copper
Country Of Origin: US
Dimensions: 1.531 in W
Length: 1.221 in
Material: PVC
Stud Size: #12 x 1/4 in
Temperature Rating: 75 deg C
Voltage Rating: 600 VAC
Features
- PVC (butted seam) terminals and splices feature a rigid polyvinyl chloride (PVC) insulation sleeve permanently attached to butted seam barrel
- Attaches to wire with one quick crimp
- Insulation sleeve prevents vibration damage by not allowing wire flex at point of crimp
- Funnel wire entrance into electrical barrel eliminates wire strand hang-up, increases crimping rates and wire termination reliability
- Terminals and splices accept maximum 0.25 in inside diameter wire, 0.04 stock
- PVC plastic insulated sleeve
- -55 to 105 deg C operating temperature
