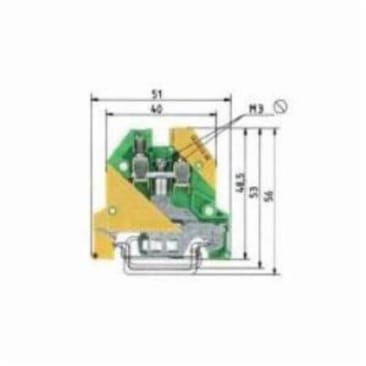

WIELAND 57.504.9055.0 WK4SL/U GROUNDING TERMINAL BLOCK
MFR Part #:Â 57.504.9055.0
SKU #:Â 1136463
Brand:Â Wieland
UPC:Â 4015573458628
Wieland 57.504.9055.0 Earth Terminal, 800 VAC, 22 to 10 AWG, 20 to 10 AWG Wire, DIN Rail/G Rail Mount
UL Listed|CSA Certified
Product Details
Attributes
Features
Wieland Earth Terminal, 800 VAC, 22 to 10 AWG, 20 to 10 AWG Wire, 9 mm Wire Strip Length, 0.5 N-m, DIN Rail/G Rail Mount, Screw, Thermoplastic Insulation, Green/Yellow, 6 mm W
Color:
Green/Yellow
Connection Type:
Screw
Dimensions:
6 mm W
Material:
Thermoplastic Insulation
Mounting Type:
DIN Rail/G Rail
Torque Rating:
.5 N-m
Voltage Rating:
800 VAC
Wire Size:
22 to 10 AWG, 20 to 10 AWG
Wire Strip Length:
9 mm
- 4 sq mm cross section
Product Details
Wieland Earth Terminal, 800 VAC, 22 to 10 AWG, 20 to 10 AWG Wire, 9 mm Wire Strip Length, 0.5 N-m, DIN Rail/G Rail Mount, Screw, Thermoplastic Insulation, Green/Yellow, 6 mm W
Attributes
Color:Â Green/Yellow
Connection Type:Â Screw
Dimensions:Â 6 mm W
Material:Â Thermoplastic Insulation
Mounting Type:Â DIN Rail/G Rail
Torque Rating:Â .5 N-m
Voltage Rating:Â 800 VAC
Wire Size:Â 22 to 10 AWG, 20 to 10 AWG
Wire Strip Length:Â 9 mm
Features
- 4 sq mm cross section
